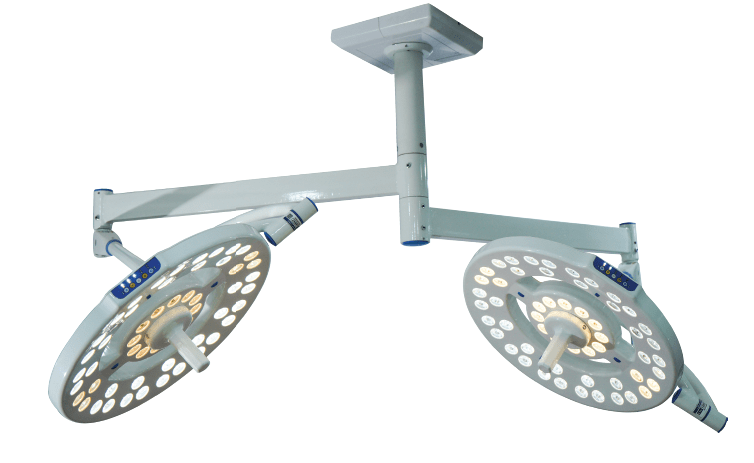

Double Dome LED OT Light
Technical Data:
No. of LED beads: 54
Illuminance (Lux): 1,80,0000 +1,80,000LUX
Color temperature (K): 3800-4800K
Diameter of light spot (mm): 533.4 MM
Color rendering index: 93Ra
Lighting depth (mm): 215 MM
Mains voltage: 220V/50Hz
Input power (VA): 400
Lowest/optimum installation height : As per requirement
Brightness Control: Capacitive Touch Panel
Colour of LED: White & Yellow (Double Colour)
Optional features: Battery backup
Configuration List:
Sterilized handles: 2pieces
LED lamp group OSRAM (Germany): 1 set 54 LEDbeads
Balance arm: 1 SET
Rotating arm (including fixed base): 1 set
Switching power supply assembly: 1 set
Reliable and Effective
The design of the light head shape fulfils the requirement of modern laminar flow OR The open design of the light reduces the surface area that impedes the flow of air from the air supply ceilings, resulting in a less turbulent flow underneath the light.
- The totally enclosed light head surface is very easy to decontaminate
- The lenses plate of the light head is durable, ageing-resistant and easy to clean
- The handles of light heads can be easily removed for soaking and autoclavable disinfection
-
Maximum Economy and highest reliability
Its technological advances make it a good long-term investment due to low maintenance and operating running cost. With various light head configurations, it maximizes the comfort of the surgeon and forbids the tissue dehydration even during long time operations.
- The minimal life expectancy of each LED is 50,000 hours
- Sophisticated LED thermal management keeps the temperature-rise of the space above surgeon's head and surgical region extremely low.
