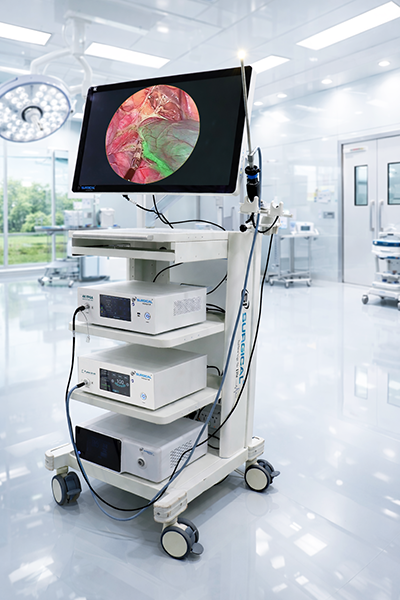

4K Laparoscopy System

Camera & Camera Head

• Camera: 9,000,000 pixels 4×1/2.8 "CMOS
• Resolution: 3840 (H) ×2160(V)
• Definition: 2100 Lines
• Minimal illumination: 0.5Lux
• Video output: HDMI2.0, SDI (4K Ultra HD output) DVI, USB3.0
• Camera cable:2.8m/Length customized
• Power supply: AC85-264VAC
• SNR: 50dB
• Scanning system: Line by line scanning
•  Store internal hard disk or USB storage
• Language: Chinese, English, Russian, Japanese and Spanish can be switched
• System: FPGA Xilinx+3CMOS 1/1.8 "Sony 3840 2160P 60fps
• Output: FPGA core algorithms Moine efimination, 18 axis color correction (3 6 hue matrix), texture enhancement
• defogging enhancement, etc. The outputs HDMI DVI-12G-SDI + NET+4 USB Waterproof handle shell IP68
• 8MT- Lemo 40P aviation head connector 3CMOS Four custom buttons for the camera: AWB, freeze, record, and take photos Front panel 7-inch touch screen LCD
• image display screen
• Video: MP4, shot: JPG
• User customization: color, joystick shortcut keys, surgical scene, logo, language, menu. Supports local USB playback of videos and photos

IR LIGHT SOURCE

• Ultra-high brightness LED cold light source
• Color temperature: approximately 6000K;
• Extra-long service life with a usage time of ≥30,000 hours;
• Color Rendering Index (CRI) 290, ensuring that illuminated tissues appear closer to their true colors;
• Manually adjustable light intensity with ≥10 dimmable levels;
• Cold white color temperature combined with a fluorescent wavelength of 780nm, minimizing fatigue even after long-term use;
• Excellent heat dissipation and silent operation performance;
• Universal light guide interface compatible with the brand's own light guides and those from other brands;
• Power consumption ≤100W, offering greater energy efficiency and environmental friendliness.

CO2 INSUFFLATORS Insufflator 40L touch Screen

(Sensor & and blower is a German Components)

Product Instruction

It is use to establish carbon dioxide pneumoperitoneum in laparoscopic surgery to provide operation & visual field space for laparoscopic surgery or examination.

Technical Specifications

• Gas: Co2 (Medical Grade)
• Co2 Gas Supply Systems: Inf 7/16" Input pressure min. to max: 3 to 4 bar
•  Insufflation pressure min to max: 01-30 mmHg (to an accuracy of 1 mm Hg)
• 7 inch color touch screen intelligent control, real time monitoring.
• Maximum flow 30L/min, continuously adjustable.
•  MOTORALA pressure sensor, three way pressure measurement & control.
• Light & Sound alarm, safe & reliable.
• Long life & stable performance.
• Supply voltage: 220V 50Hz
• Power: 160VA
• Range of flow: 10L/min; 20L/min; 30L/min
• Range of press: 5-30mmHg
• Noise: Less than equal 50dB

4K 32'' Medical Grade Monitor

Features

• True Flat Design with AR Filter
•  High Brightness and High Contrast Ratio
• 4K UHD Resolution (3840 x 2160)
• HDMI 2.0 DP 1.2 Support Up to 3840 x 2160 @ 60 Hz
• SDI Support Up to 2840 x 2160 @60Hz (4K SDI 3G x 4)
• DVI Support Up to 3840 x 2160 @ 30 Hz
•  Video Enhancement features including: 14-bit LUT processing DICOM Part 14 GSDF Compliant DICOM, Clear, Blue modes support
• Optional upgrade to IP-based monitor with AVA

LCD

Screen Size: 32" (708.48x398.52mm)

Resolution: 3840x2160

Aspect Ratio: 16:9

Display Mode: AHVA

Backlight: LED

Power

Rating: DC24V 10.41A MАХ

Consumption: 168.5W(Max)

4K TELESCOPE

• Image Quality & Resolution: HD (1920x1080p) or 4K (Ultra HD) for sharp, detailed images.
•  Diameter: Common sizes are 5mm and 10mm, chosen based on procedure and body cavity.
• Direction of View (DoV): 0° (straight), 30°, or 45° (angled), providing different perspectives.
• Working Length: Varies by size, e.g., 28-34 cm for 5mm/10mm scopes, ensuring reach.
•  Light Transmission: Integrated fiber optics for illumination, often using optimized glass fibers for uniform brightness.
• Material & Durability: Laser-welded stainless steel, scratch-free sapphire tips, and autoclavable for sterilization.
• Compatibility: Must connect with standard camera heads (CCD/CMOS) and light sources.
