Features
- True Flat Design with AR Filter
- High Brightness and High Contrast Ratio
- 4K UHD Resolution (3840 x 2160)
- HDMI 2.0, DP 1.2 Support Up to 3840 x 2160 @ 60 Hz
- SDI Support Up to 3840 x 2160 @ 60 Hz
- (4K SDI 3G x 4)
- DVI Support Up to 3840 x 2160 @ 30 Hz
- Video Enhancement features including:
- 14-bit LUT processing
- DICOM Part 14 GSDF Compliant
- DICOM, Clear, Blue modes support
- Optional upgrade to IP-based monitor with AVA
LCD
Screen Size: 32" (708.48x398.52mm)
Resolution: 3840x2160
Aspect Ratio: 16:9
Display Mode: AHVA
Backlight: LED
Power
Rating: DC24V 10.41A MAX
Consumption: 168.5W(Max)
Laproscopes
Endoscope: HD 10 mm, HD 10 mm, HD 5 mm, HD 5 mm
Working Length: 344 mm, 344 mm, 312 mm, 312 mm
Field: Wide angle, Wide angle, Wide angle, Wide angle
Direction: 0 Degree, 30 Degree, 0 Degree, 30 Degree

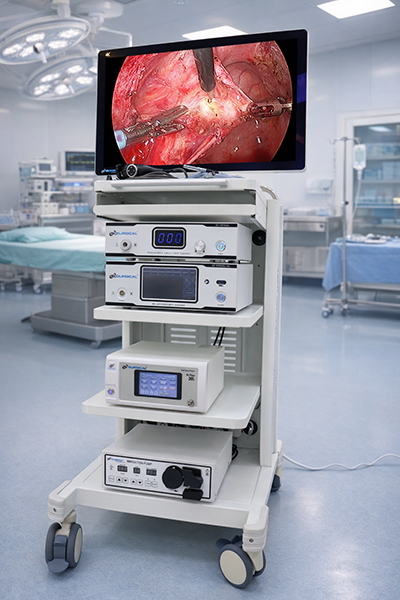

This 4K optical system is optimized for use in a 4K image chain.
- 1. High Definition Laparoscopy Optics.
- Sharp Detailing and easy focus
- Adopt high quality stainless steel material
- German optic glass, light fiber and light cone
- High depth of focus
Hysteroscopes
Endoscope: HD 2.9 mm, HD 2.9 mm
Working Length: 302 mm, 302 mm
Field: Wide angle, Wide angle
Direction: 0 Degree, 30 Degree
Cystoscopes
Endoscope: HD 4.0 mm, HD 4.0 mm,HD 4.0 mm
Working Length: 302 mm, 302 mm,302 mm
Field: Standard, Standard,Standard
Direction: 0 Degree,12 Degree, 30 Degree
The Imaging Technology you can rely on
4k Resolution. Deliver ultra-high-definition image with 3840x2160 resolution.
Wide color Gamut. Restore the organs and tissues in real color, perfect identification of blood vessels, lymph nodes and nerves.
Resolution: 3840*2160p@60fps
Storage: USB, snap to export
Video output signal: DVI, HDMI, S-VIDEO
White balance: Auto and memory
Image enhancement: Edge enhancement
IRIS: Auto/Peak/Average
Technical Parameters
Key Features
- 4"Smart Touch screen display
- Smart intensity control {10%-100%}
- Intelligent user interface with smart step control
- LED color temp-6500 with CRI>91
- LED working hours and led working temperature
- 120W ultra bright led light
- Illumination-1400000 lux at LED
- PWM with smart microprocessor
- Sleep Mode with resume mode
- Advance MCU constantly monitors led power and brings it info safe range
- STROZ fiber compatibility for FO cables
The configuration and versatility you demand
High performing, functional and ergonomic, SI SURGICAL camera head is equipped with CMOS image sensor, supporting 60FPS Full-High-Definition (FHD) digital signal. Furthermore, it is designed to offer a brilliant user's experience.
- THE 4 customisable, one-key-access remote buttons facilitate parameters tuning in the middle of a procedure.
- The international standard C-mount guarantees better compatibility with other brands and models of endoscopes
Wide Color Gamut
Restore the organs and tissues in real color, perfect identification of blood vessels, lymph nodes and nerves.
3-200mm Depth of Field
Focus remains clear while switching between multiple operating scenes.
Co2 Insufflator
Product Instruction
It is use to establish carbon dioxide pneumoperitoneum in laparoscopic surgery to provide operation and visual field space for laparoscopic surgery or examination.
Functional Characteristics
- 7 inch color touch screen intelligent control, real time monitoring.
- Maximum flow 30L/min, continuously adjustable.
- MOTORALA pressure sensor, three way pressure measurement and control.
- Light and sound alarm, safe and reliable.
- Long life and stable performance.
Technical Parameter
- Supply voltage: 220V 50Hz
- Power: 160VA
- Range of flow: 10L/min; 20L/min; 30L/min
- Range of press: 5-30mmHg
- Noise: Less than equal 50dB
