Laproscopes
Endoscope: HD 10 mm, HD 10 mm,HD 5 mm,HD 5 mm
Working Length: 344 mm,344 mm,312 mm,312 mm
Field: Wide angle,Wide angle,Wide angle,Wide angle
Direction: 0 Degree,30 Degree,0 Degree,30 Degree
This 4K optical system is optimized for use in a 4K image chain.
- High Defination Laparoscopy Optics.
- Sharp Detailing and easy focus
- Adopt high quality stainless steel material
- German optic glass, light fiber and light cone
- High depth of focus
Hysteroscopes
Endoscope: HD 2.9 mm,HD 2.9 mm
Working Length: 302 mm,302 mm
Field: Wide angle,Wide angle
Direction: 0 Degree,30 Degree
Cystoscopes
Endoscopе: HD 4.0 mm,HD 4.0 mm,HD 4.0 mm
Working Length: 302 mm,302 mm,302 mm
Field: Standard,Standard,Standard
Direction: 0 Degree,12 Degree,30 Degree
Features
- True Flat Design with AR Filter
- High Brightness and High Contrast Ratio
- 4K UHD Resolution (3840 x 2160)
- HDMI 2.0 DP 1.2 Support Up to 3840 x 2160 @ 60 Hz
- SDI Support Up to 2840 x 2160 @60Hz (4K SDI 3G x 4)
- DVI Support Up to 3840 x 2160 @ 30 Hz
- Video Enhancement features including: 14-bit LUT processing DICOM Part 14 GSDF Compliant DICOM, Clear, Blue modes support
- Optional upgrade to IP-based monitor with AVA
LCD
Screen Size:32" (708.48x398.52mm)
Resolution:3840x2160
Aspect Ratio:16:9
Display Mode:AHVA
Backlight:LED
Power
Rating: DC24V 10.41A MAX
Consumption: 168.5W(Max)
The IMAGING TECHNOLOGY you can rely on
4k Resolution. Deliver ultra-high-defination image with 3840x2160 resolution.
Wide color Gamut. Restore the organs and tissues in real color, perfect identification of blood vessels, lymph nodes and nerves.
Resolution: 3840*2160p@60fps
Storage: USB, snap to export
Video output signal: DVI,HDMI S-VIDE
White Balance: Auto and memory
Image enhancement: Edge enhancement
IRIS: Auto/ Peak/ Average

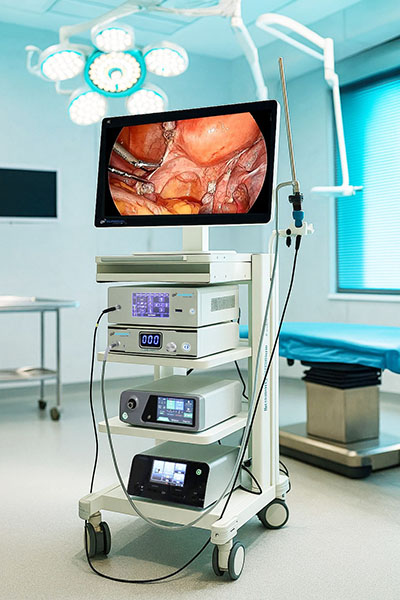

Hi Crystal 41 Laparoscoрy System With FPGA (Made in Japan Mother Board & PСВ)
- System: FPGA Xilinx+3CMOS 1/1.8 "Sony 3840 2160P60fps output:
- FPGA core algorithms Moine efimination, 18 axis color correction (3 6 hue matrix), texture enhancement,
- defogging enhancement, etc. The outputs HDMI DVI-12G- SDI + NET+4 USB Waterproof handle shell IP68
- 8MT- Lemo 40P aviation head connector 3CMOS Four custom buttons for the camera: AWB, freeze, record, and take photos Front panel 7-inch touch screen LCD
- image display screen
- Video: MP4, shot: JPG
- User customization: color, joystick shortcut keys, surgical scene, logo, language, menu. Supports local USB playback of videos and photos
4K Dual LED Light Source With FOC Technical Parameters
Key Features:
- 4" Smart touch screen display
- Smart intensity control {10%-100%} Key Features: Intelligent user interface with smart step control
- LED color temp 6500 with CRI>91
- LED working hours and led working temperature
- 120W ultra bright led light
- Illumination- 1400000 lux at LED
- PWM with smart microprocessor
- Sleep mode with resume mode
- Advance MCU constantly monitors led power and brings it info safe range
- STROZ fiber compatibility for FO cables
The Configuration & Versatility you demand
High performing, functional & ergonomic, SI SURGICAL camera head is equipped with CMOS image sensor, supporting 60FPS Full-High-Definition (FHD) digital signal. Furthermore, it is designed to offer a brilliant user's experience.
- The 4 customisable, one-key-access remote buttons facilitate parameters tuning in the middle of a procedure.
- The international standard C-mount guarantees better compatibility with other brands & models of endoscopes.
Wide Color Gamut
Restore the organs & tissues in real color, perfect identification of blood vessels, lymph nodes & nerves.
3-200mm Depth of Field
Focus remains clear while switching between multiple operating scenes.
C02 Insufflators Insuff 40 L touch Screen (Sensor & and blower is a German Components)
Product Instruction
It is use to establish carbon dioxide pneumoperitoneum in laparoscopic surgery to provide operation & visual field space for laparoscopic surgery or examination.
Technical Specifications
- Gas: Co2 (Medical Grade)
- Co2 Gas Supply Systems: Inf 7/16" Input pressure min. to max: 3 to 4 bar
- Insufflation pressure min to max: 01-30 mmHg (to an accuracy of 1 mm Hg)
- 7 inch color touch screen intelligent control, real time monitoring.
- Maximum flow 30L/min, continuously adjustable.
- MOTORALA pressure sensor, three way pressure measurement & control.
- Light & Sound alarm, safe & reliable. Long life & stable performance.
Functional Characteristics
- Supply voltage: 220V 50Hz
- Power: 160VA
- Range of flow: 10L/min; 20L/min; 30L/min
- Range of press: 5-30mmHg
- Noise: Less than equal 50dB
