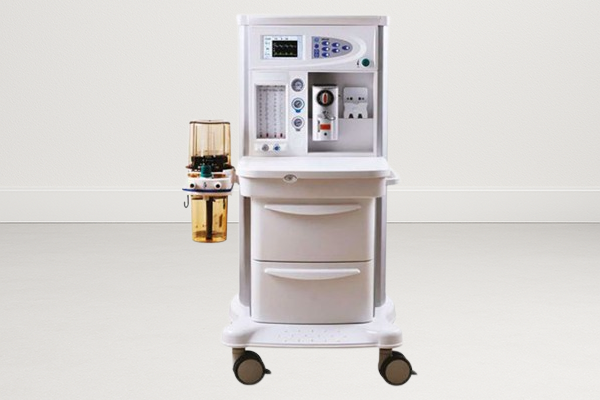

Adonis 301C Plus

Adonis 301C Plus


  • 7 inch colour LCD screen
  • Compact Anesthesia ventilation system with the standard of ISO 9001:2015
  • Easy to operate, user friendly
  • Ventilation parameters monitoring, preset parameters, alarm indication and breathing waveform monitoring
  • Support adult and pediatric
  • Applied for closed, semi-closed, semi open inhalation anesthesia controlled or assisted ventilation

Technique Specifications

Physical specifications

Dimensions: 70*85*140cm

Weight: 65kg

Casters: Central brake with lock

Screen: LCD

Display: 7 inch

Display graphics: Waveforms of F-T, FT Monitoring: VT, MV, BPM. Paw Paw, Lung compliance


Working specifications

Power: AC 220V±10%, 50Hz±2%

Output pressure: 0.4±0.1MPa

Current: 500mA max


Ventilator Specifications

Modes of ventilation

IPPV: Intermittent Positive Pressure Ventilaton

SIMV: Synchronized Intermittent Mandatory Ventilation

MANUAL: Manual

STAND-BY: Stand-By
