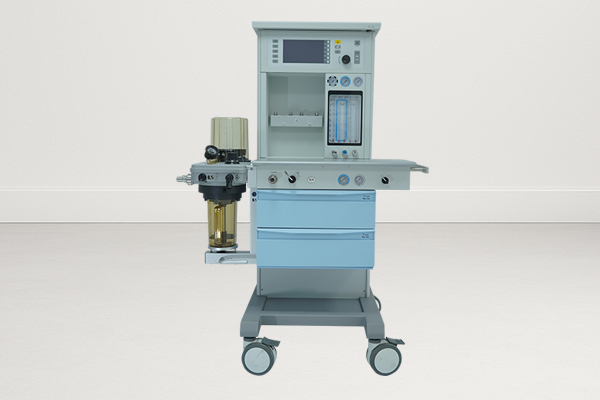

Atlas N3

Atlas N3

Anesthesia Workstation


8 color TFT screen, optional touchscreen.

User friendly design interface.

Tidal volume 10-1500 ml.

Up to 6 flow tubes for 3 gas.

PPSU/Metallic material of breathing circuit.

By-pass Tech for soda lime canister.

All ventilation modes to satisfy neonate, pediatric and adult patients.

Integrated breathing circuit with built-in heater.

Highly visible ACGO.

Superior ventilator

Fresh gas, compliance and leakage compensation VCV,PCV, PSV, SIMV, ACGO, Manual ventilation modes Alarms of incorrect installation of breathing system and soda lime canister.

Pediatrics applicable breathing circuit

Autoclavable Metallic and PPSU material. Featured with stable pressuretightness. Visual observation bellows. Breathing system with upward or downward bellows.

Exellent CO2 absorber

One-hand operation designed CO2 absorber.

By-Pass design ensures savely to renew it during operation.

Canister on-line detector.

Autoclavable PPSU material (up to 134°C).

Large workbench

Two-sided guide rails (optional) for patient monitor, support arm and injection bump. Stainless steel material can stand any chemical sterilization agent.

LED lights equipped to provide lighting for the workbench.


Dimensions : Height (With casters) 146cms icm Width 90cms1cm Depth 71cms1cm Safe shelf loading 25kg 0.5kg

Screen: 8 inch TFT LCD screen, 800x480 pixels 12 inch optional

Gas supply: 02. NIO, AIR

Selectatec bar: Dual positions

ACGO: Standard

Mechanical Flowrneter: 6 flow tubes for 3 gas

By-pass: Standard

Ventilator Software: V-CMV, P-CMV, PSV, V-SIMV, P-SIMV, PRVC, Standby, Manual/Spont

Spirometry loop: P-VP-FF-V,reference Loop

Spare Cylinder yoke: Optional(Oz, N2O)

Li-ion Battery: 1 battery, 4800mAh, Optional (2 batteries 9600mAh)

AGSS: : Optional

Waveforms: Up to 3 waveforms, user configurable

Aurimary power outlets: 3

Wheels: Four wheels(125mm) with 2 separate brakes

Drawers: 2

Reading lamp: LED lighting Included

Gas monitor module: Optional (CO), AG)

Built-in Heater: Standard

02 cell: Optional

Vaporizer: Optional (Drager/Penlon/Northern)

Patient monitor: Optional

Suction Device: Optional
