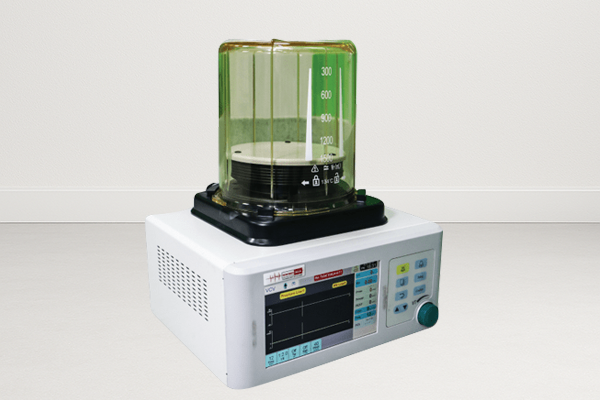

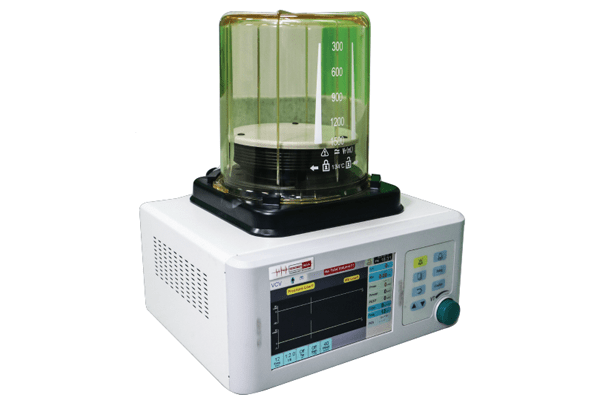

Av10 Anesthesia Ventilator

Av10 Anesthesia Ventilator

Anesthesia Ventilator

Features:

Provide A/C ventilation to the patient in the process of operation or in recovery after the operation.

Applied for adult and pediatric

Microprocessor controlled integrated anesthetic ventilation system

7 inch TFT display screen

Good air tightness, high reliability

It provides the physician with a flexible, simple and easy-to-use ventilator for closed circuit AND semi-close circuit. All the selected patient parameters are clearly visible on large, bright LCD displays. The audio-visual alarm system contains improved alarm features including alarm mute. The 1010 is an advanced, yet easy-to-use anesthesia ventilator.

Technical Specifications:

Dimensions: 43cm 38cm*49cm

Weight: 10kg

Working type: Electronically controlled, pneumatic driven

Patient type: Pediatric, Adult

Ventilation mode: IPPV, SIMV, MANUAL (BAG)

Tidal volume: 40-1500ml

E ratio 4:1-1:8

Frequency:

Adjustment range: 1-100bpm

Under IPPV and Manual mode: 4 65bpm

Under SIMV: 1-40bpm

Monitoring: VT, MV, BPM, Paw, FiO2, PEEP Respiratory Frequency I:E ratio, Ppeak

Waveform: Pressure-time, Flow-time

Power: AC 220V±10%, 50HZ±2%, built-in battery > 2hrs (rechargeable) 12V Inspiratory time (TI) (at SIMV): Adjustment range: 0.2 s. 6.0 s (the limit of I:E

ratio≤ 4)

Pressure trigger: -20 cmH20 0 cmH20

Pressure limit

Patient airway pressure range: -2KPa 10KPa

Airway pressure monitoring range: 0 10KPa

Safety valve pressure limit. 6Kpa

Alarm: High (low) pressure alarm High (Low) MV alarm, AC power lost alarm

Accessories:

Oxygen sensor

Silicon tubes (reusable)

Tidal volume sampling sensor

Oxygen high pressure hose

Main Features

Provide A/C ventilation to the patient in the process of operation or in recovery after the operation. Applied for adult and pediatric Microprocessor controlled, integrated anesthetic ventilation system 7 inch TFT display screen Safety Good air tightness, high reliability

Main specifications

Electronically controlled, pneomatic driven

Patient spectrum: Pediatric to bariatric

Ventilation mode: IPPV, SIMV, MANUAL (BAG)

Tidal volume: Adjustment range 0-1500ml

1: E ratio: 4: 1-1:8

Frequency

Adjustment range: 1-100bpm

Monitoring

VT, MV, BPM, Paw, FiO2, PEEP, Respiratory Frequency, I: E ratio, Ppeak

Waveform

Pressure time, Flow-time

Power: AC 220V 10%, 50Hz± 2%, built-in battery 2hrs(rechargeable) 12V

Safety valve pressure limit: 6Kpa

Alarm: High (low) pressure alarm, High (Low) MV alarm, AC power lost alarm.
