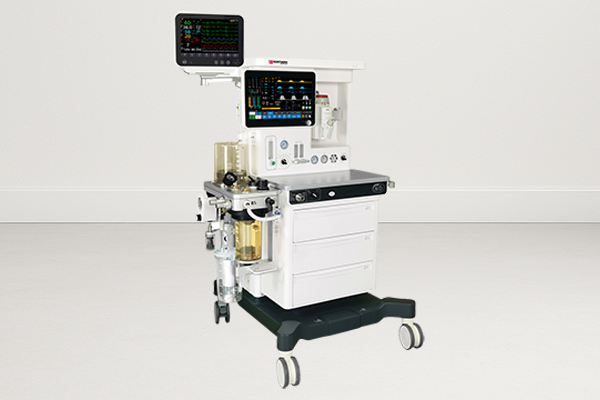

Atlas N6
Configurations
Dimensions: Height (With casters) :143cm ; Width: 98.5cm; Depth: 84.5cm; Safe shelf loading 25 kg±0.5kg
Display: 15.6 inch TFT LED screen, 1366*768 pixels
Gas control & supply: Electronic control gas mixer, O2, N2O, Air
Position for vaporizer: Dual positions (Selectatec bar)
ACGO: Semi-electronic Flowmeter
Electronic Flowmeter: O2, Air and N2O (numerical/bargraph
By-pass: Standard
Ventilator Mode: V-CMV, V-SIMV, P-CMV, P-SIMV, PSV, PCV-VG,AMV, Manual/Spont,HLM
Spirometry loop : P-V, P-F, F-V, Reference Loop
Waveforms: Up to 4 waveforms
Li-ion Battery: 1 battery, 4800mAh, Optional (2 batteries, 9600mAh)
Tidal volume (Vt): 10~1500 ml, optional 2~1800 ml
Inspiratory pressure (Pinsp): 5~70 cmH2O
Respiratory frequency (Freq) : 4~100 bp
Wheels: Four wheels (separate brakes), optional with brake with central brake control
Drawers: 3
Built-in heate: Standard
Auxiliary power outlets: 4
Reading lamp: LED lighting Included
O2 cell: Standard
AGSS: Optional
Gas monitor module: Optional includes CO2 and AG Module
Vaporizer: Optional (Drager/Penlon/Northern)
Spare cylinder yoke: Optional (O2, N2O )
Patient monitor: Optional
Suction Device : Optional
Features:
- 15.6”TFT touch screen
- User friendly interface.
- Electronic flow meter, precise control and
- Tidal volume 2-1800 ml accurate data monitoring
- PPSU/Metallic material breathing circuit.
- By-pass Tech for soda lime canister.
- All ventilation modes to satisfy neonate, pediatric and adult patients.
- Integrated breathing circuit with built-in heater.
- High visible ACGO.
- Optional plug-in module socket.
Exellent CO2 absorber
One-hand operation designed CO2 absorber. By-pass design ensures the safety of replacing soda lime Canister during the operation. Canister on-line detector. Autoclavable PPSU material (up to 134°C)
Large workbench
Two-sided guide rails (optional) for patient monitor, support arm and injection bump. Stainless steel material can stand any chemical sterilization agent LED lights equipped to provide lighting for 2~1800ml tidel volume to meet the surgical requirements for neonates, pediatrics and adults. Fresh gas with compliance and leakage compensation. Ventilation modes: V-CMV, V-SIMV, P-CMV, P-SIMV, PSV, PCV-VG,AMV, Manual/Spont,HLM Alarms for incorrect installation of breathing system and soda lime canister. the workbench
Pediatrics applicable breathing circuit
Autoclavable Metallic and PPSU material. Featured with stable pressuretightness. Visual observation bellows. Breathing system with upward or downward bellows.
Accurate ventilator
2~1800ml tidel volume to meet the surgical requirements for neonates, pediatrics and adults. Fresh gas with compliance and leakage compensation. Ventilation modes: V-CMV, V-SIMV, P-CMV, P-SIMV, PSV, PCV-VG,AMV, Manual/Spont,HLM Alarms for incorrect installation of breathing system and soda lime canister.
