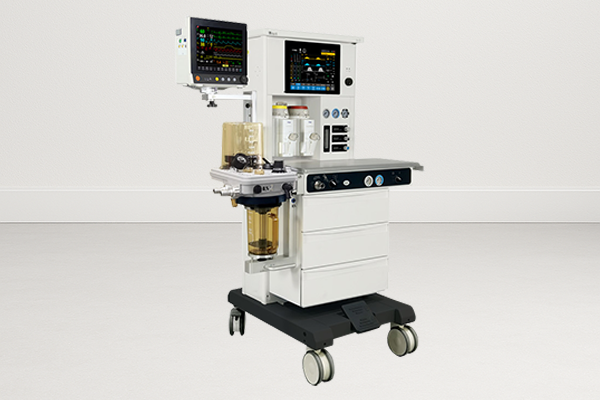

Atlas N5
Anesthesia Workstation
Reno Precious V
Features:
15.6"TFT touch screen, optional 8",12"
User friendly design interface
Tidal volume 10-1500 ml
Full-electronic control and electronic flow meter, precise control and accurate data monitoring
Metallic or PPSU material of birthing circuit
By-pass Tech for soda lime canister
All ventilation modes to satisfy neonate, pediatric and adult patients.
Integrated breathing circuit with built-in heater
High visible ACGO
Optional:Auxiliary 02 and Air supply
Mechanical/Electronic Flush 02 button
Exellent CO2 absorber:
One-hand operation designed CO2 absorber.
By-pass design ensures the safety of replacing soda lime canister during the operation.Canister on-line detector. Autoclavable PPSU material (up to 134°C).
Large workbench:
One-hand operation designed CO2 absorber.
By-pass design ensures Two-sided guide rails for patient monitor, support arm and injection bump. Stainless steel material can stand any chemical sterilization agent LED lights equipped to provide lighting for the workbench.he safety of replacing soda lime canister during the operation. Canister on-line detector. Autoclavable PPSU material (up to 134°C).
Configurations:
Dimensions: Height (With casters) Width 130cm±1cm Depth 90cm±1cm 71cm±1cm Safe shelf loading 25 kg±0.5kg
Display : 15.6 inch TFT LCD touch screen,optional:12.1/8 inch
Gas supply: O2, N2O, AIR
Selectatec bar: Dual positions
ACGO: Standard
Flowmeter: Electronic/Semi-Electronic/Mechanical Flowmeter
By-pass: Standard
Ventilator Software: V-CMV, P-CMV, PSV, V-SIMV, P-SIMV, PRVC, HLM, Standby, Manual/Spont
Spirometry loop: P-V,P-F,F-V
Spare Cylinder yoke: Optional (O2, N2O)
Li-ion Battery: 1 battery, 4800mAh, 2 batteries, 9600mAh(optional)
AGSS: Optional
Waveforms: Up to 4 waveforms, user configurable
Auxiliary power outlets: 3
Wheels: Four wheels(125mm) with 2 separate brakes
Drawers: 2 (optional 3)
Reading lamp : LED lighting Included
Gas monitor module: Optional (CO2, AG)
Heater: Standard
02 cell: Optional
Vaporizer: Optional(Drager/Penlon/Northern
Patient monitor: Optional
Suction device: Optional
