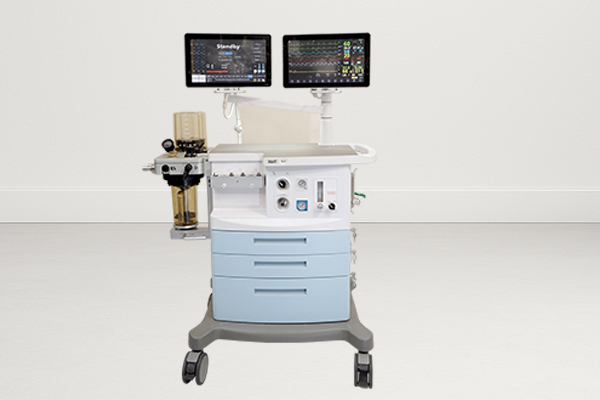

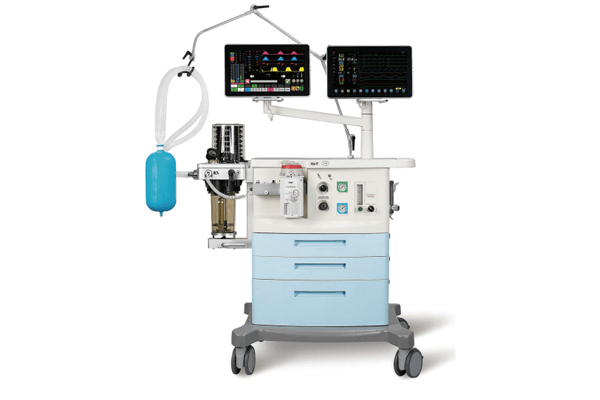

Atlas N7

Atlas N7

Anesthesia Workstation

Reno Precious Vii


15.6" TFT touch screen, integrated patient monitor design.

User friendly design interface, easy to operate.

Human engineering design, rotatable supporting arm and adjustable angle. • Full-electronic control and electronic flow meter, precise control and accurate data monitoring.

All ventilation modes to satisfy neonate, pediatric and adult patients.

Integrated breathing circuit with built-in heater.

Durable breathing system:

Metallic breathing circuit, upward or downward bellows design. Easy to dissassemble for clean and sterillization demand. By-pass Tech for soda lime canister. Position detection of breathing system installation. Support the demand of autoclaving at 134°c.

Excellent CO2 absorber:

Soda lime canister can be easily operated by one hand. Easy to exchange soda lime during the operation. Position detection of canister installation. PPSU can support the demand of autoclaving at 134c.

Superior ventilator:

10-1500ml tidel volume range, suitable for neonates, pediatrics and adults. Fresh gas, compliance and leakage compensation. VCV,PCV, PSV, SIMV, ACGO, Manual ventilation modes. Alarms of incorrect installation of breathing system and soda lime canister.

Large workbench:

Can be easily disassembled for clean and sterilization. Stainless steel material can stand any chemical sterilization agent. LED lights equipped to provide lighting for the workbench.


Work Surface: Height (With casters),149cm(58.6inch) Width 90cm(35.4inch) Depth 65.6cm(25.8inch) Safe shelf loading 15 kg±0.5kg

Screen: 15.6 inch TFT LED screen, 1366*768 pixels (17" /19" optional)

Gas control & supply: Electronic control gas mixer, O2, N2O, Air

Position for vaporizer: Dual positions Selectatec bar)

ACGO: Standard

Electronic Flowmeter: 02, Air and N2O(numerical/bargraph)

By-pass: Standard

Ventilator Software: V-CMV, P-CMV, Standby, Manual/Spont Optional(P-CMV, P-SIMV, PSV, PRVC)

Spirometry loop: P-V,P-F,F-V,reference Loop

Waveforms : Up to 4 waveforms, user configurable

Li-ion Battery: 1 battery, 4800mAh Optional(2 batteries, 9600mAh)

Castors: Four castors(dual wheels 125mm) with 4 separate brakes

Drawers: 3

Built-in heater: Standard

Auxiliary power outlets: 4

Reading lamp: LED lighting Included

02 cell : Standard

AGSS: Optional

Gas monitor module: Optional (CO2, AG)

Vaporizer: Optional(Drager/Penlon/Northern)

Patient monitor: Optional

Suction device: Optional
