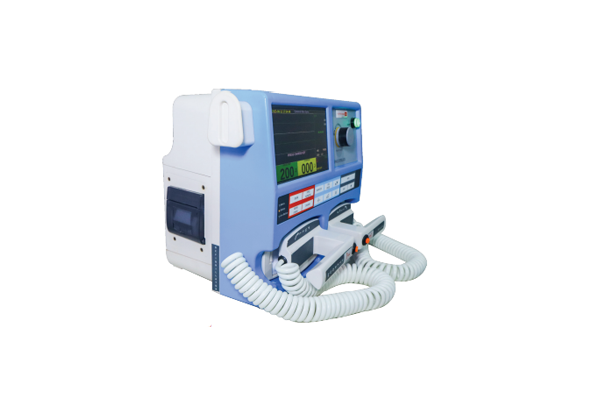

DF 201
Technical Specifications
7" Color Display with built in printer Charging time 8 sec on mains
General
Display: 7"Colour TFT
Display area: 150 mm x 90 mm
Dimensions: H 280 x W 330 x D 220mm (Max) without paddle
Weight Approx. 6 Kgs. Max.
Power Supply
Input: 150-270 VAC, 50HZ, 1
Battery: 12 V 4.5Ah, Rechargeable
Battery Capacity: 3 hours for Monitor and 70-100 shocks on single
charge
LED indicator. Low battery and battery charging
Power consumption. 30 watts (max.) in ECG mode
Environmental
Operating Temp. -5°C to +50°C
Humidity: up to 95% non-condensing
Delib
Operating Mode: Manual
Waveform: Biphasic
Energy: 2 to 360 joules in 15 steps selection
Synchronous: Energy delivery begins within 60 ms of the QRS Peak
Charging Time: 6 seconds on Mains
Paddle Assembly: External paddle assembly with coil retractable High
voltage cable. Adults & Pediatric paddle Integrated to same handle
Check Mode: Manual test mode
Operation: By front panel keyboard, Encoder & ON-OFF by front panel push
button
ECG
Frequency response: 0.5 Hz to 35 Hz
Patient isolation: Optical isolation Lead selection: Lead I, II and III
Gain setting: 0.5, 1.0 and 2.0
CMRR: > 90 db
Sweep Speed: 12.5, 25.0, 50.0 mm/sec
Digital filter: Digital signal processing for good quality of ECG
Heart Rate
Range: 10-250 BPM
Accuracy: +/- 2 BPM
Resolution: 1 BPM
Tone: Beep on every QRS detected
Low alarm limit range: 10-250 (step of 1)
High alarm limit range: 10-250 (step of 1)
Printer
Paper Type: Thermal paper 50/55mm width, 20 meters length for 2" printer
Event Printing: Prints 5 Seconds pre & post ECG with Date, Time, Energy and mode, Shock Status
ECG in Defib Mode: Prints last 10sec ECG through paddle
Print Annotates in Defib Mode: Time, Date, Mode, lead name, gain, sweep
speed ECG in Monitor Mode: Prints last 10sec ECG through cable
Print Annotates in Monitor Mode: Time, Date, selected Lead name, Gain, Sweep Speed
Manual Defib Check Mode: Prints the status of Shock, Energy, Date and Time
AED Mode (Optional)
Wave form: Biphasic
AED Shock Series: Energy level 200J
Charge Command: Automatic after identifying arrhythmia
Shock Command: Front panel button, shock
Charging Time: Less than 8 Sec
Controls: Analyze
Defibrillation Electrode: Self-adhesive, adult electrodes
Voice and Text prompts: Voice and text and prompts to guide user
Pacer (Optional)
Wave form: Monophasic
Modes: Demand or Non-Demand
Amplitude: From 10mA to 150 mA (resolution of 10 mA).
Pulse Width: 40 ms (+/-1ms)
Frequency: From 20 ppm to 250 ppm (increments of 1 ppm)
Refractory period: 340 ms (from 30 to 80 ppm): 240 ms (from 90 to 180 ppm)
Maximum output voltage: 150 V.
Impedance range: 200 ohm to 1 k ohm
Sp02 (Optional)
Range: 0-100%
Accuracy: 70-100% +/-2%, 50-69% +/-3%
Pulse rate: Displayed when PR is deselected.
Pulse beep: Stepless volume control
PR Range: 10 to 250 bpm
Pitch variation with change in oxygen saturation.
NIBP (Optional)
Range: 10-250mmHg
Method: Oscillometric
NIBP interval: User selectable-3 min. to 120 min
Modes: Manual, auto
Cuff deflation: Automatic
Safety features: Automatic deflation if cuff pressure exceeds 280 mmHg
NIBP status: "Ready", when not taking reading "Measuring", when taking reading and "Error", if reading could not be taken cue to some error while measuring
Patient Type: Adult, Pediatric, Neonatal
EICO2 (Optional)
Parameters: CO2, RR
Measurement unit: mm Hg
Breath rate: 3 150bpm
Range: 0 to 100mmHg
Accuracy: 2mmHg
Resolution: 1mmHg
"Due to our continuous product development program, the specification may change without prior notice
