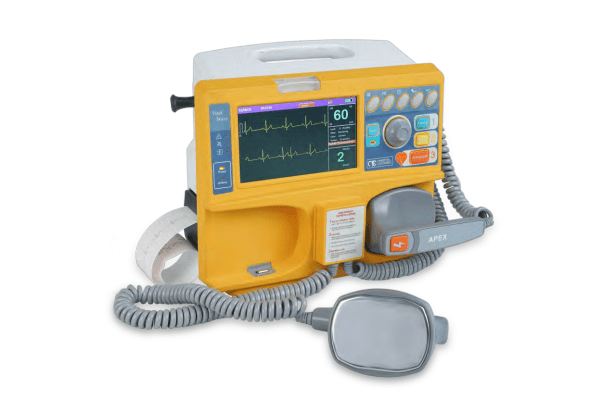

Vital Wave
Features
- 7" colour TFT display
- Easy energy selection upto 270 joules
- Less than 8 seconds for full charge 270 joules
- More than 50 shocks on full charge battery
- Event trend and storage upto 24 HRS
- ECG acquisition via paddles & cable
- Upgradable to spo2 & NIBP
Technical Specifications
Measuring Parameters
Channel: 2 Channel
Electrode: 3/5 Leads
ECG Acquisition: Patient Cable and Paddles
Display: 2 Waveforms with HR and Joules selected
Lead: Lead I, II, III, aVR, aVL, aVF, V
Gain Selection: 5/10/15/20 mm/mv
Sweep Speed: 12.5, 25 or 50 mm/sec
Heart rate range: 30-240 bpm
Heart Rate Accuracy + 2 bpm
Frequency Response 0.05 to 40 Hz
CMRR: >100 dB
Input Impedance:>100 M Ohms
Recorder
Type: High Resolution thermal array recorder
Printing Speed: 25 mm/sec
Printer Paper Size: 57 mm x 20 Mtr.
Details on print: HR,ECG w/f along with energy delivery, Date, Time, Patient Details (ID, name, age, sex), Joules selected, Sweep speed and Gain
Display
Type: Color TFT display
Size: 7" Diagonally
Resolution: 800 x 480 Pixels
Electrical
Power Input: 110-240 V AC, 50 Hz
Battery Rating: 14.8 V/4400 mAh, Li-Polymer
Charging Time: 8 Hours
Operating Time: 40-50 shocks (270 joules) or more than 3 Hours monitoring without printing
General
Weight: 5.4 Kg
Dimensions: 403 (L) X 152 (H) X 324 (W) mm
Working temperature and humidity: 0-40 deg. cel. & up to 90% non condensing
