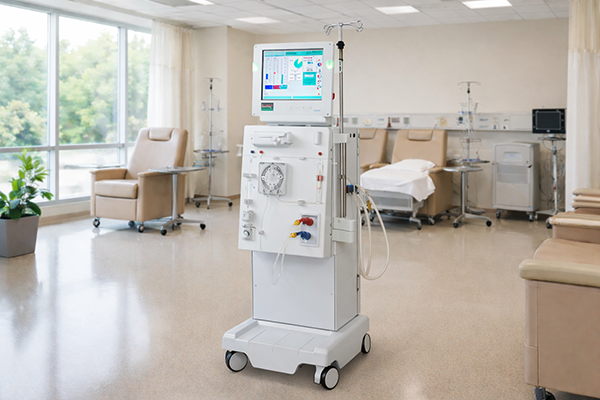

Evo Lite
Description
Dialog+ SW 9.xx (Evo Light)
Technical Specifications :
Special Features : Colour monitor, TFT Display, 15", Touch screen for easy handling, Optical Status light clearly indicates the treatment status.
Water Supply:
Water inlet pressure: 0.5 to 6.0 bar
Water inlet temperature: 10°C - 30°C
Max. drain height : 80cm
Electrical Data
Power supply: 230 V, 50 Hz
Current consumption : Max. 11 A
Rating: 2500 VA
Extracorporeal circuit
Arterial pressure monitoring
Display range: -400 to +400 mm Hg'
Accuracy : ± 10mm Hg
Venous pressure monitoring
Working range: 20 to + 390 mm Hg
Accuracy : ± 10mm Hg
Transmembrane pressure monitoring
Display range: 0 to +700 mm Hg'
Arterial blood pump
Blood flow range: 50 to 600 ml/min
Accuracy: ± 10%
Safety Air Detector: Ultrasound measurement in the tube
Heparin pump
Profile : To be Available
Delivery range: 0.1 to 10 ml/hr, Heparin delivered volume to be displayed on the screen
Bolus rate: 600 ml/h
Syringe size: 10,20 & 30 ml
Dialysis fluid circuit
Dialysate flow profile: To be Available
Dialysis fluid flow range
Dialysate flow range: 300 - 800 ml/min, with 1 ml/min increment
Tolerance: ± 5%
Dialysis fluid temperature
Temperature profile: To be Available
Selectable: +33°C to +40°C
Bicarbonate Conductivity
Profile available: To be Available
Range: 4.0 to 7.0 mS/cm
Accuracy: ± 0.2 mS/cm
Dialysis fluid conductivity
Profile available : To be Available
Range : 12.5 to 16.0 mS/cm
Accuracy : ± 0.2 mS/cm
Ultrafiltration
UF profile: Flexible, user definable to be available
UF rate: 0 to 4 Litres / Hr
Accuracy: 0.2 ml per chamber cycle, UP pump tolerance <1%
Allowed dialyser UF factor: Unlimited
Parameters displayed: UF goal, UF time, UF rate, UF volume
6 Profiles: Profile for Sodium, Bicarbonate, Heparin, Ultrafiltration, Dialysate Temperature & Dialysate flow
Kt/V monitoring: To be Available
Single needle dialysis : Possible with Single pump click clack method
Battery backup: Minimum 15 min, for Monitor, Arterial, venous pressure monitoring, Blood pump & SAD
Heat Exchanger: Integrated (Used used warm the incoming water hence reduces power consumption)
Absolute theraphy end time setting: Can set theraphy end time by entering absolute time
Standby mode : Reducing to 0 ml/min the consumption of dialysate
Timer function: Allowing the user to set up reminders and to-do tasks
Blood leak detector
Type : Optical, colour specific
Sensitivity: > 0.50 ml/min (HCT 45%) > 0.35 ml/min (HCT 25%)
Alarms: Audio and Visual alarms for Blood pump stop, Blood leak, Safety air detector, Conductivity, Temperature, Dialysate flow, By pass, disinfetion canister empty, TMP alarm, Concentrate can empty alarm, air leak alarm
Disinfection and cleaning
Rinse
Temperature/flow: 40°C/ 1400 ml/min
Thermal disinfection
Temperature/flow: Automatic running of program at approx. 85°C/ 1400 ml/min
Chemical disinfection: Citric acid 50%
Temperature/flow: Automatic running of program at approx. 85°C/ 1400 ml/min
Quality standard: CE and FDA approved
Terms & Conditions:
GST: 5% Extra as actual as per HSN code.
Validity: This offer is valid for 30daysfromthe quotation date.
Warranty:
- 12 (Twelve) months from the date of installation against any manufacturing defector technical failure at our site.
- Warranty excludes perishable components,consumables,disposables and parts subject to normal wear and tear like rubber parts, plastic, bulbs, etc.
Order: Favoring “S I Surgical Corporation.
Payment:
- 100% advance.
- Cheque (at par at Kolkata) Demand Draft(payable at Kolkata) favoring of SI Surgical Corporation.
Delivery charge: Extra as actual.
