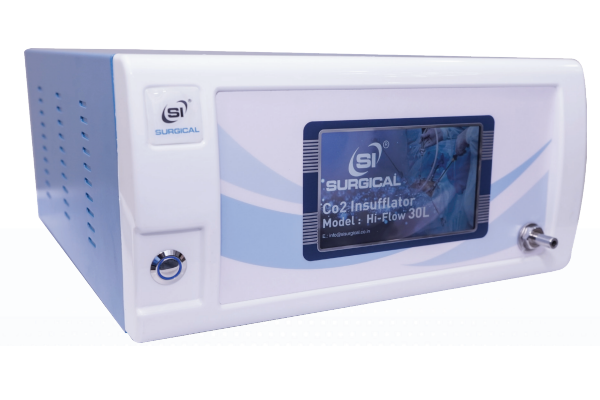

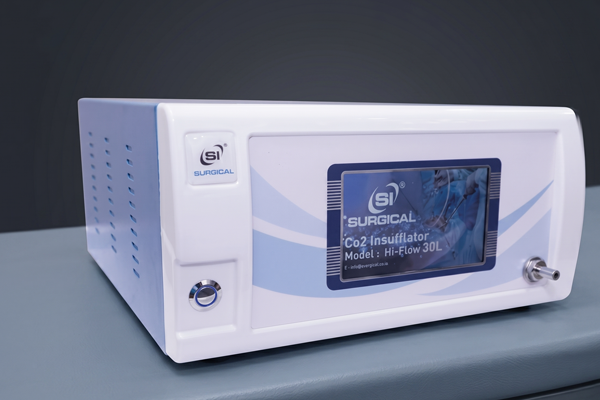

CO2 INSUFFLATOR
Co2 Insufflator is used to distend the body cavity or operative site, to separate the abdominal wall from its contents and/or to increase the surgical area for the ease of surgery during minimally invasive surgical procedures like
Accurate Flow control: For delicate & critical surgeries, Flow can be set in 1 LPM/step
High Flow Insufflation: Flow Insufflation rate can be set upto 30LPM
Temperature Control: User can vary the temperature of the CO2 gas to suit the Patient's requirement to avoid
hyperthermia.Over-pressure detection Indicator for remnant/consumed gas Automatic pressure regulation with internal exhaust ort Tube obstruction alarm Virtual/External Back Pressure Alarm
Product Details:
Application: Hospital/Veterinary Purpose
Laparoscopy (General Surgery), Hysteroscopy
(Gynaecological Surgery), Thoracoscopy, Proctoscopy, Endoscopy of the upper or Lower Gastro
intestinal tract with following features:
Technical Specifications
Gas: Co2 (Medical Grade)
Co2 Gas Supply Systems: Inf 7/16" Input pressure
min. to max: 3 to 4 bar
Insufflation pressure min to max: 01-30 mmHg (to an
accuracy of 1 mm Hg)
Flow rate min to max: 1 to 30 liters/min
Type of power supply: 220-240 Volt AC 50-60 Hz
Protection by fuse: 5Amp
Power consumption: 125 Watt Max with Warmer of 25
W Max
Display: LCD TOUCH DISPLAY
Enclosure: Metal Body box
Dimension: 280 (L) mm x 280 (W) mm x 110 (H) mm
Weight: 4,5KG
CLEAR & UN-OBSTRUCTED VIEW: Warms CO2 Gas
upto body (34 to 39 Degree) temperature to avoid fogging over the camera due to temperature variation.
