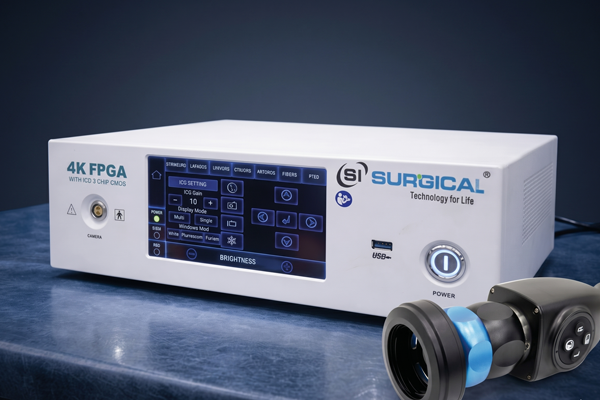

Camera & Camera Head

• Camera: 9,000,000 pixels
• Image sensor: 3 Chip CMOS
• Image mode: Standard 2D, Fluorescence, Tone mode
• Resolution: 3840 (H) ×2160(V)
• Definition: 2100 Lines
• Minimal illumination: 0.5Lux
• Video output: HDMI2.0, SDI (4K Ultra HD output) DVI, USB3.0, VGA, 12G-SDI
• Camera cable: 2.8m/Length customized
• Power supply: AC85-264VAC
• SNR: 50dB
• Scanning system: Line by line scanning
• Store internal hard disk or USB storage
• Language: English, Russian, Japanese and Spanish can be switched
• System: FPGA Xilinx+3CMOS 1/1.8 "Sony 3840 2160P 60fps
• Output: FPGA core algorithms Moine efimination, 18 axis color correction (3 6 hue matrix), texture enhancement
• Defogging enhancement, etc. The outputs HDMI DVI-12G-SDI + NET+4 USB Waterproof handle shell IP68
• 8MT- Lemo 40P aviation head connector 3CMOS Four custom buttons for the camera: AWB, freeze, record, and take photos Front panel 7-inch touch screen LCD
• Image display screen
• Video: MP4, shot: JPG
• User customization: color, joystick shortcut keys, surgical scene, logo, language, menu Supports local USB playback of videos and photos
• Inbuilt USB Playback recording system
• FPGA for visualization blood flow
• ICG for tissue detecting and clear observation
• Compatible with 32’’ 4K Surgical monitors, showing over 1 billion colors for clearer tissue detail

Advanced Imaging:

• Fluorescence: Uses FPGA for visualizing blood flow (ICG) and anatomy in real-time, even with less contrast
• Tissue Detail: Clear observation of fine tissues with true blacks and higher contrast
• Tone Mode: Balances brightness and enhances posterior lighting for better foreground detail

System Benefits:

• Versatility: adapts to multiple surgical specialties, including general surgery, urology, and gynecology
• Safety: Improves safety in procedures like cholecystectomy by clearly showing the biliary tree
• Efficiency: Can reduce procedure times and length of hospital stays with better visualization
