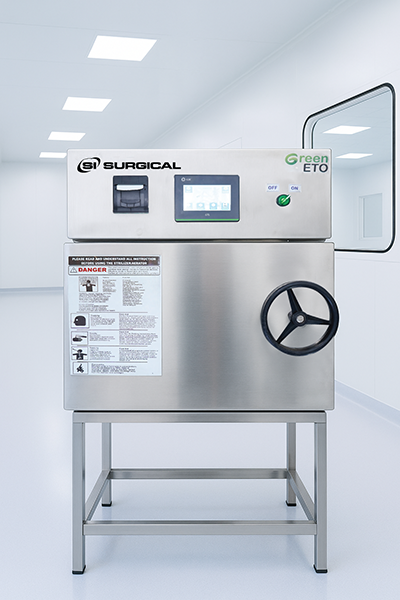

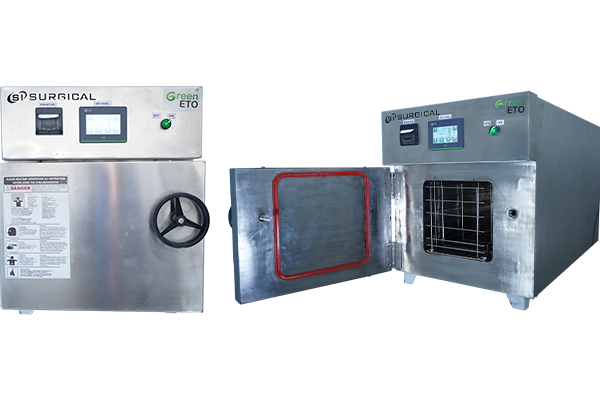

Ethylene Oxide Sterilization Feature: Accessories: Green ETO
Feature and Accessories
Feature:
Can sterilize heat sensitive and moisture
sensitive instruments
Fully automatic
Advance control system
Gas injection system
Cycle customization
Aeration system
Safety features
Data logging and documentation
Compatibility with packaging materials
Accessibility and ergonomics
Accessories:
ETO flat roll
Cartridge
Sealer machine (Optional)
Exhaust pipe with connector
SS 304 basket
Technical Details
Inner Seal (Chamber) : SS 316L Thickness: 4 mm
Chamber Operating Pressure : Negative pressure cycle
Chamber Testing pressure : e 1.5 Kg/cm2
Single Door : SS 316L Thickness: 8 mm with door interlock system
Gasket : Silicon Gasket (10/12 mm solid section)
Outer cover : Factory Finished (Poly-coated) Grade stainless steel 304, Thickness 1mm
Heating : Heaters on all sides of the chamber ensure uniform heating throughout the load.
Temp Sensor : For accurate measuring and controlling of Temp. in the chamber
Operating Temp and cycle : Minimum: 37°C Maximum: 60°C (Inner chamber (1) Cool Cycle: 37°C to 40°C (2) Hot Cycle: 50°C to 60°C (3) Leak Test cycle
Pressure Transmitter : For measuring and controlling the pressure-vacuum that the load is subjected to during gas removal and charging.
All fittings on the machine : Grade stainless steel 304
All Valves for Automation : Teflon construction Pneumatic valves, operated by Comp. Air supply through Solenoid valves
Humidification : A special humidifier for humidifying the load and heating the gas.
Vacuum : Vacuum created by compressor.
Automation Hardware : PLC HMI : 4 Inch – Multicolor Touch display
Process Reports with thermal printer : Reports are generated by the software for each and every cycle in three formats, viz. (i) Single page Summary report and (ii) Detailed Report
Testing : Pressure / Vacuum testing as per specified standards. (1.5 times the working pressure)
Operation : All functions are electro-pneumatically operated. Door closing is manual
Loading Trolley : Fabricated with SS 304
Air Filter : A 0.2-micron air filter is also provided with the machine for fresh air intake.
Description of the Automation:
The machine is provided with the microprocessor/PLC based automation along with an LCD/touch screen display, which allows the operator to
- Change and set the parameters.
- Run the cycle according to pre-selected cycles.
- Monitor various phases/individual parameters during the process.
- View off/on status of various components of the machine while the cycle in the progress
-
Software for controlling, monitoring, and recording various parameters is provided. This allows the machine to be operated and monitored by connecting it to any computer with the software installed, in addition to being operated directly from the machine. This software controls and regulates all the machine functions, making the system user-friendly and enabling the operator to change process parameters as needed.
Standard Packaging list:
- EO cartridge (40 ml/100ml) - 10 nos.
- ETO Flat roll (4 inches * 200 meters) - 1 nos.
- Sealer machine (12 inches, heavy) - 1 no.
- ETO sterilizer basket - 1 no.
- Exhaust pipe with connector (1 meter) - 1 nos.
