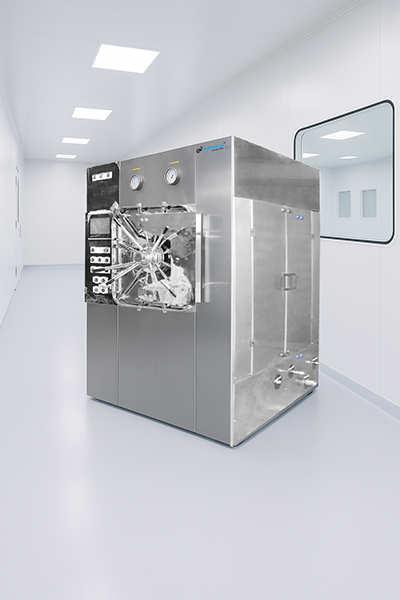

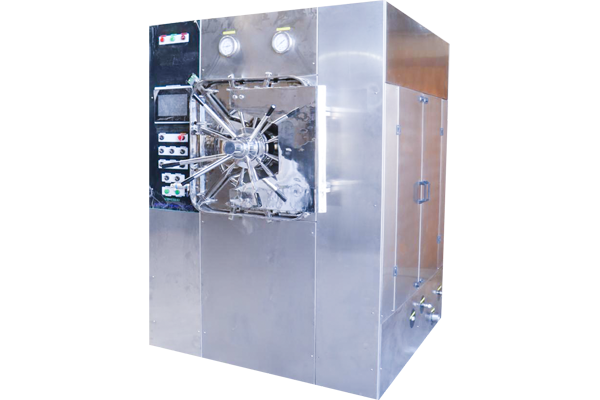

Rectangular full automatic high pressure steam sterilizer
Technical Specifications:
The High-Pressure Vacuum Steam Sterilizer is used for sterilization of machine parts, change parts, fabric, tubing, bulk drugs, etc. in a pharmaceutical facility. The autoclave has been built in accordance to ASME guidelines and GMP norms.
Capacity / Size Chamber Size 1520mm (depth) x 610mm (width) x 910mm (height)
Size: 610mm W X 610mm H X 1520mm D
Capacity: 550 Litre
Chamber: Thickness – 6mm Ss 316l
Jacket: Thickness – 6mm Ss 304l
Doors: Thickness – 12mm Ss 316l Hinged Door
Door Gasket (Silicon Rubber): Make: Ami Polymer
Hydraulic Test Pressure: 4 Kg/Cm2
Steam Generator: Ss 304l
Float Switch: Ss 316l
Heater: Ss 316l
Vacuum Pump: Make: Kirloskar
Outer Insulation: Ss 304l (Thickness: 1.2mm)
Door Safety
- The Following Door Safety Features Are Provided For Maximum Operator Safety: -
- Door Inter-Lock To Prevent Simultaneous Opening Of Both Doors.
- Process-Lock To Prevent Opening Of The Door During The Process.
- Process-Lock To Prevent The Opening Of The Non-Sterile Door After Successful Completion Of The Cycle.
- Door Obstruction Safety.
- Door Lock Cylinder Provides For Door Safety. (Make: Festo)
- Limit Switch Also Provides For Door Protection.
-
Insulation
- The Sterilization Chamber Is Insulated With 100-Mm Thick Glass Wool, Which Is Held In Place By An Outer Cover Of Ss 304.
- The Average Surface Temperature Of The Machine Will Not Be More Than 350c.
Vacuum: 3 Hp (Make: Kirloskar)
Piping Package: Ss 304
Steam Trap: Make: Forbes Marshall
Pressure Switch: Make: Dannfos
Pressure Transmitter: Make: Honeywell
Pressure Gauge: Make: Baumer
Compound Gauge: Make: Baumer
Temperature Drain Gauge: Make: Baumer
Y Type Pneumatic Valve / Solenoid Valve: Make: Mascon
Nrv (Non-Return Valve): Make: Aira
Chamber/Jacket Safety Valve: Make: Aira
Valve Bank: Make: Smc
Plc: Make: Honeywell
Hmi: Make: Fuji
Chamber Contact Part Pipeline: Ss 316l
Chamber Non-Contact Part Pipeline: Ss 304l
Rtd Sensor Make: Ikc
PU Pipe Make: SMC
PU Connector: Make: SMC
Cycle:
H.P.H.V. Cycle, 134°C Unwrapped, 121°C
Unwrapped, 121°C Wrapped (with drying), 134°C
Wrapped (with Drying), Bowie & Dick test program
0.2 Micro Air Filter: SS 304L
