Hospital Beds

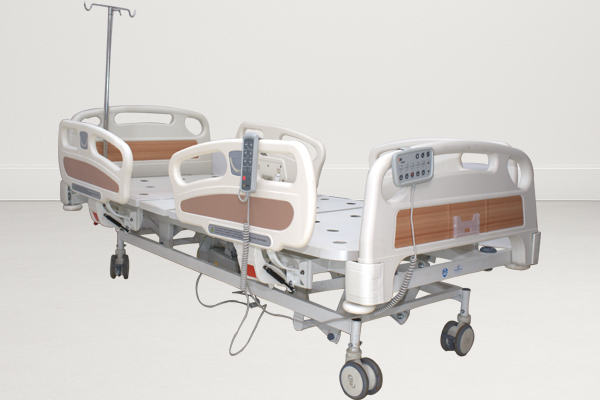

ICU 5 Function Electric Bed with Nurse Control

Specification:

• Advance linear actuator system [04 pcs motor, 01 pc control box, 01 pcs handset, 01 pcs nurse control system]
• Overall approx. Size: 81"L X 39"W X 18"-29"H
• Mattress Platform size - 76"Lx W 35"W
• Motorized backrest, knee rest, HI-LOW adjustment, Trendelenburg and reverse Trendelenburg, cardiac chair position.
• Positions obtained by hand remote & nurse control system
• Angle indicator on side railing
• Polymer molded head and foot panels that easily removable without using any tools.
• Four pieces individual Butterfly side-rails, ABS Molded.
• Four corner safety molded buffer 100mm diameter.
• Framework made-up of M.S. tubes (50mm*25mm rectangular tubes).
• 4 section top made-up of oval perforated CRCA 1.2mm M.S. sheet.
• Bed mounted on 5" castors with 2 brakes.
• S.S. telescopic I.V. rod provision for 4 location
• SS heavy duty IV pole
• Integrated urine bag holder
• Finish: pre-treated nine tank hot phosphate &
• Epoxy powder coated.
• One touch auto CPR & manual CPR
