Hospital Beds

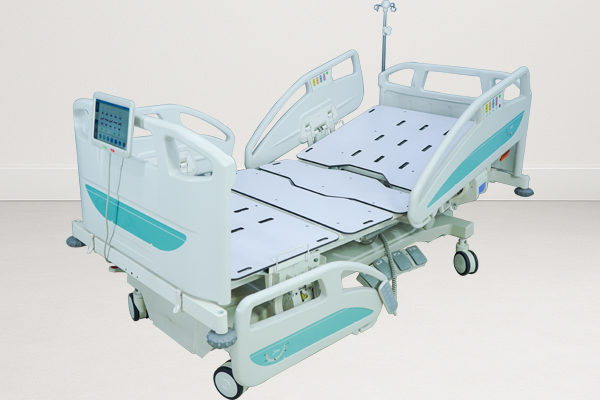

ICU BED with Radio Translucent Top

Description:

PILLER-I is the new designed full electric type hospital bed, it is widely used in ICU room due to special design like embedded inner and outside guardrails button control, and nursing handle controller, weighing system, X-ray platform. It is economic solution for most ICU room

Specification:

• Overall approx. size: 81’’L X 42’’W X 21’’-37’’H
• Head foot board size: 38’’L X 21’’H
• Side railing size: 38’’L X 14’’H (Big) 31’’L X 14’’H (Small)
• Trendelenburg/reverse Trendelenburg: 0 - 12 degree
• Side to side tilt: 0-12 degree
• weighing system
• Loading weight: 240kg
• Backrest. 0-75 degree
• Leg rest: 0 - 35 degree
• Back & leg linkage
• Bed lifting
• The bed is tilted from side to side
• Manual CPR
• Qower-driven CPR
• One key chair position
• Function locking
• Battery power display
• Floor lighting
• Patient scram
• Central control brake
• Four corners for collision avoidance
• Bed extension
• Back slide
•

Standard Configuration:

• Motor control box: 1
• Push road motor: 5
• Handheld controller: 1
• Full function controller:1
• Guardrail controller: 2
• Foot controller:2
• Storage battery: 1
• Floor lamp: 1
• Head & Foot board: 1 set
• Guard rail: 1
• Central control castor: 4
• Video box backrest: 1
• I.V. stand hole: 5
• Fender wheel: 4
• Drainage hook: 4
• Binding strap retaining ring: 4
• Bed end rack: 1
• Reel: 1
• Extended bed surface: 1
•

Optional Accessories:

• Mattress
• Iv pole
• Monkey pole
• Oxygen tank rack
• Binding band
• Dining table
• Bedside cabinet
• Attendant bed
•

Electrical Parameter:

Power connection

• 100-240VAC, 50/60Hz,3500mA
• Input power: 840VA
• Class of protection: IP54
