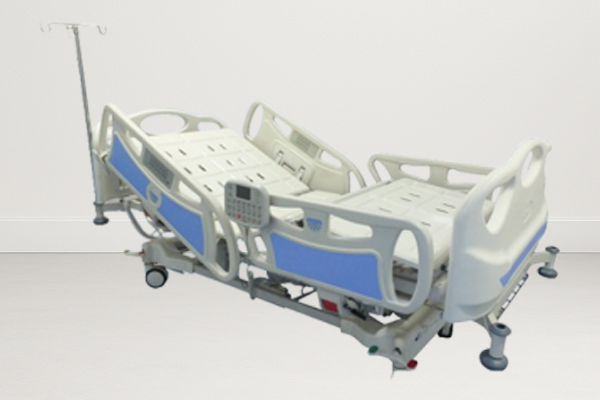

ICU Electric Bed 10 Function

Download

ICU Electric Bed 10 Function

Specification:

Advance linear actuator system [05 pcs motor, 01 pc control box, 01 pcs handset & 01 pcs Nurse control system]
Overall approx. size - 82"L x 39"W x 18" - 29"H
Mattress platform size – 76’’L x 35"W
Positions obtained by hand remote & nurse control system with display
Bed mounted on 5" imported castors with central locking system.
S.S. telescopic I.V. rod provision for 4 locations.
SS heavy duty IV pole
Integrated urine bag holder
Manual CPR liver for backrest.
Four corner safety molded buffer 100mm diameter.
Separate wired hand set control for patient and attendant.
Finish: pre-treated nine tank hot phosphate & epoxy powder coated.
Electrically operated lateral tilt system (both side)
Four pieces individual imported swing type side railings with degree protector, abs molded.
Imported abs molded head and foot panel
Framework made-up of M.S. tubes thickness 1.6mm
4 section top sheet made-up of perforated ABS molded
Base cover with Central locking system
Weight measuring system by LCD display
Nurse control system
Under bed light
Bed extension is 200mm towards the ankle
One touch CPR
Battery backup up to 1 hour
