Hospital Beds

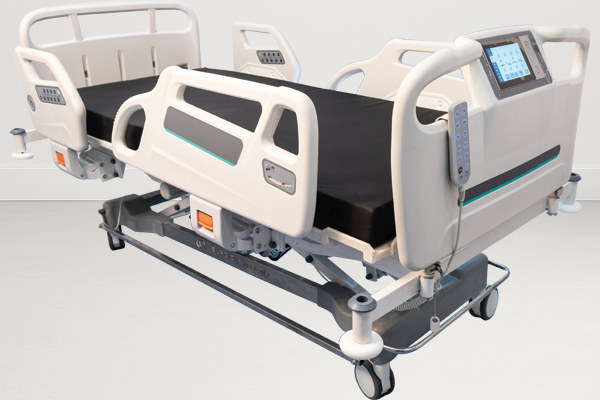

NEO Display

Specification:

• Motorized back rest, leg rest, back & leg linkage, Trendelenburg & Reverse Trendelenburg & HI-LOW Positions
• Integral lift
• Independent brake
• Iv stand hole
• weighing system
• Dimension: 84’’L X 41’’W X 17-28’’H
• Backrest section adjustment range: 0-75°
• Knee section adjustment range: 0-35°
• Trendelenburg: 0°-12°
• Reserve-Trendelenburg: +0°-12°
• Bed extension: 17-28’’
• Loading capacity: 240kg
• Four corner buffer to avoid collision
•

Standard Configuration:

• Motor control box: 1
• Push road: 6
• Handheld controller: 5
• Storage battery: 1
• Head & Foot board: 1 set
• Railings: 1 set
• Central control brake: 4
• IV Stand hole: 4
• Collision avoidance wheel: 4
• Hook for drainage: 4
• Weigh in: 1
•

Optional Accessories:

Mattress

• Iv pole
• Dining table
• Bedside cabinet
• Attendant bed
•

Electrical Parameter:

Power supply connection

• 220-240VAC, 50/60Hz. 0.5A
• Input power: 120VA
• Class of protection: IP54
