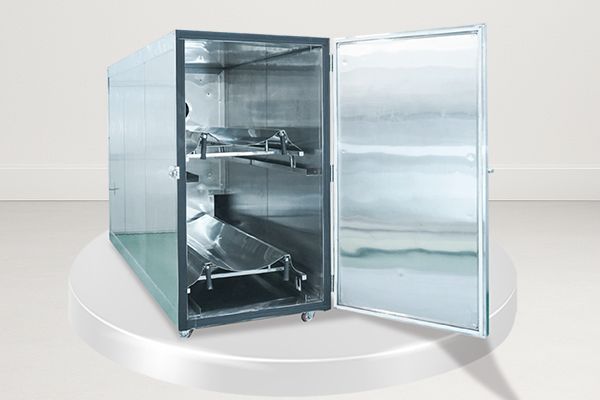

SIS 3000
Mortuary Chamber
Safety System
- Hi-Low temperature deviation alarm.
- Sensor Failure Indication protection.
- Start-up dellay protection for compressor.
Refrigeration System
- Hi-performance hermetically sealed compressor.
- CFC-free ECO-FRIENDLY refrigerants.
- High density HCFC-free polyurethane insulation foam,
- Uniformly spread evaporator imparts faster freezing and better performance on
- conformity of temperature.
Applications
- Cooling coils for mortuary freezer are placed between foamed-in-place PUF insulation and brazed to Stainless Steel chamber elliminating any chances of FROST FORMATION and choking of evaporator.
- Finned tube evaporator with forced air convention for mortuary refrigerator.
Construction
- Outer body of Stainless Steel, Inner Chamber of Stainless Steel. High-density machine-filled HCFC-free polyurethane insulation foam (PUF). Specially designed latch eliminates cooling loss. Side by side chambers for bigger capacities.
Technical Speciation:
Technical Speciation : SI-MC-2 , SI-MC-3, SI-MC-4, SI-MC-6, SI-MC-12
Capacity : 2 Body, 3 Body, 4 Body, 6 Body, 12 Body
Temperature range : +2 to +6° C, +2 to +6° C, 2 to +6° C, 2 to +6° C, +2 to +6° C
Inner size (2 body) : 78"L X 33"W X 63΄΄Η
Temperature : Microprocessor/Micro-controller based temperature controller.
Temperature Display : Digital LED
MOC Inner : Stainless Steel 304G.
Door : Heavy Stainless Steel 304G. Hinged door with single gasket seal between the doors.
Insulation : High grade PUF INSULATED between outer and inner chamber for minimal thermal losses.
Body Trays : Pull-out trays made up of SS 304G. Sheet.
Castors : Castors for minimall effort mobility.
Refrigeration System : Superior and heavy-duty air-coolled refrigeration system.
Compressor : CFC FREE ECO FRIENDLY,
Condenser : Highly efficient condenser with automatic condensate evaporating system.
Evaporator : Internal evaporator system forced draught.
Refrigerant : Non CFC/HCFC environmental friendly based on compressor capacity.
Air Circulation : Forced air circulation to maintain chamber uniformity.
Door Lock : Provided for safety and security of specimen.
Power Supply : 220V-230V, 50Hz, Single Phase Supply.
Optional :
- Also available 316G, stainless steel
- If you wanted to hold dead body for 10 days, we can increase the temperature to -20°
