Product Details

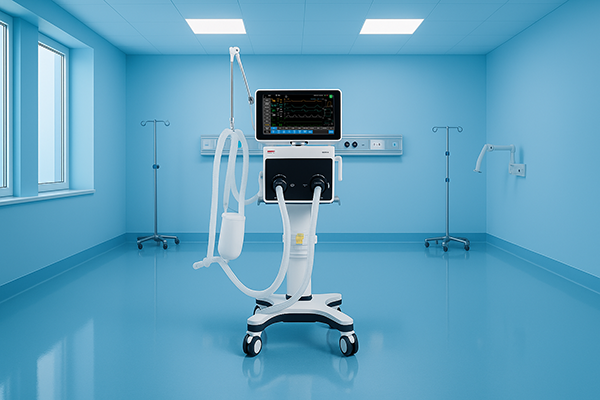

V6

V6

Product overview

  • 360°Rotatable LCD
  • 15.6 “TFT Touch Screen(18.5”Optional)
  • One-hand operative valves
  • Stable and durable trolley (with brake) Neonatal sensor (optional accessories
  • Advanced automated adaptive assisted wide-range ventilation system with electronic microprocessor controlled by volume and pressure to fit for all types of patients from Neonates , Pediatrics to Adults.
  • Both invasive and non-invasive modes make the unit wide applications. Integrated self-check system with leak check and system tightness to secure the ventilation result(POST: Power On self test).
  • Automatic leakage compensation by the unit provides is giving to optimize respirator settings
  •  Two Lithium batteries guarantee the unit usage up to 6 hours.
  • Manual settable Inspiratory pause from 0.1-6seconds.
  • The unit is with automatic triggers adjustment both on flow trigger and pressure trigger.
  • The unit is with measurement of volumetric capnography of CO2 (ETCO2 measurement function)
  • AMV mode can minimize the work of breathing under the target minute ventilation.

Neonatal sensor (optional accessories)

The minimum tidal volume is 2ml. It is suitable for newborns and even premature infants to avoid barotrauma; Meet the needs of patients of different ages, provide individualized treatment, more accurate and safer Standard

ETCO2 and SpO2 interfaces

ETCO2 showed the concentration of CO2 in blood during ventilation, reflecting the effect of ventilation; It is an important index to judge hyperventilation or hypoventilation. SpO2 can directly Visual display the concentration of blood oxygen; It is an important index to judge the function of ventilation and air change. Double index real-time monitoring at the same time, more convenient, more intuitive, more secure.

High and low pressure oxygen interface

The low pressure oxygen interface can be connected to the hyperbaric oxygen cylinder or the central oxygen supply, so that the ventilator can provide sufficient oxygen for patients when ensuring the breathing of mild and severe patients, so as to improve the oxygenation of patients. The independent low-pressure oxygen interface can be connected to the oxygen pillow or small oxygen bottle to facilitate the hospital transportation and ensure the safety of patients.

Physical Specifications

Specifications

Dimensions(L*W*H): 404mm * 297mm* 576mm(mainunit) 538mm * 495mm * 1391mm (with trolley)

Weight: Approximately 21.0kg(main unit), Approximately < 45.3 kg (with trolley)

Ventilation Specifications:

Specifications

Patient Type: Adult, Pediatric, Neonatal

Invasive Ventilation Mode:

  • VC-ACV (Volume Controlled – Assist Control Ventilation)
  • PC-ACV (Pressure Controlled – Assist Control Ventilation)
  • PVC-ACV (Pressure Volume Controlled-Assist Control Ventilation)
  • VC-SIMV (Volume Controlled – Synchronized Intermittent Mandatory Ventilation)
  • PC-SIMV (Pressure Controlled – Synchronized Intermittent Mandatory Ventilation)
  • PVC-SIMV (Pressure Volume Controlled – Synchronized Intermittent Mandatory Ventilation)
  • PC-Dual PAP (Pressure Controlled-Duo Positive Airway Pressure)
  • PC-APRY (Pressure Controlled – Airway Pressure Release Ventilation)
  • CPAP/PSV (Continuous Positive Airway Pressure/Pressure support ventilation)
  • CPAP-VG (Continuous Positive Airway Pressure-Volume Guarantee)
  • Apnea Ventilation

Non-invasive Ventilation Mode:

  • PC-ACV (Pressure Controlled – Assist Control Ventilation)
  • PVC-ACV (Pressure Volume Controlled-Assist Control Ventilation)
  • PC-SIMV (Pressure Controlled – Synchronized Intermittent Mandatory Ventilation)
  • PVC-SIMV (Pressure Volume Controlled – Synchronized Intermittent Mandatory Ventilation)
  • PC-Dual PAP (Pressure Controlled-Duo Positive Airway Pressure)
  •  PC-APRY (Pressure Controlled – Airway Pressure Release Ventilation)
  •  CPAP/PSV (Continuous Positive Airway Pressure/Pressure support ventilation)
  • CPAP-VG (Continuous Positive Airway Pressure-Volume Guarantee)
  •  Apnea Ventilation

Gas Supply

Specifications

Gas Supply : Pressure Medical-grade Oxygen

Pipe Connector : NIST or DISS

Gas Supply: 280-600kPa

Low-pressure oxygen inlet

Specifications

Pressure range : Less than 100 kPa

Maximum flow : 15 L/min (STPD)

Connector  : CPC quick connector

Communication interface

Specifications

O2 therapy : Screen-lock

Nebulization : Sigh

Manual Breath : SPO2

Inspiratory Hold : CO2

Expiratory Hold : RSB

PEEPi : Compliance

P0.1 : Calibrate

ATC:  O2 suction
