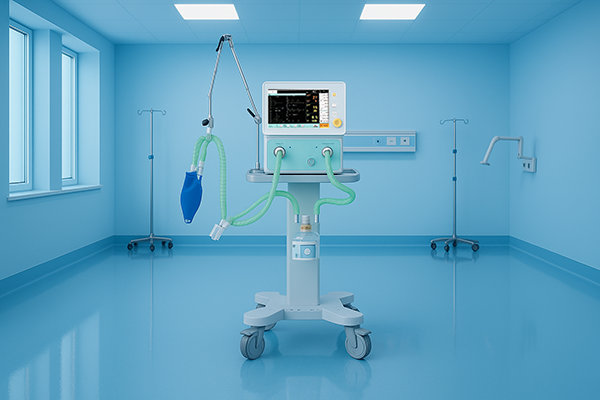

VG70
Superior Mobile ICU ventilator
- Comprehensive ICU ventilator including BIVENT and PRVC
- Compact, big capacity battery, no air compressor, intra-hospital mobility
- Flexible device configuration: equipped on a trolley, bed or ceiling pendant
Cost Effective Solution
- Unique metal-based, autoclavable, heated exhalation valve
- Built-in flow sensor, non-consumable design
- Upgradeable ventilation system software, with an available USB port
Safe Ventilation Through Whole Treatment Phase
Initial Treatment Phase
- Noninvasive ventilation mode associated with decreased intubation rates, shortened patient stays, improved patient comfort, and a reduced risk of cross infection
- Preset patient’s height and IBW. Reduce clinician’s workload
Stable Condition Phase
- PRVC and BIVENT employ lung-protective strategies, delivering intelligent ventilation
- Comprehensive lung mechanics monitoring include compliance, airway resistance, PEEPi and time constant
- Three waveforms & three loops with user-friendly display provide a continuous monitoring of the patient’s condition
Weaning Phase
- Various ventilation modes enhance the weaning process
- The unique trigger and leakage compensation system safeguards each and everypatient breath resulting in smooth and comfortable breathing, avoiding extra workload on the patient and promoting recovery
- RSBI and WOB provide accurate reference for weaning
Rehab Phase
- Data export port provides connection to hospital monitors and Patient Data Management Systems
- Provides pressure support for the patient when spontaneous breathing is present
Technical Specification
Ventilation Modes: VCV(A/C) PCV(A/C) PRVC SIMV(VCV)+PSV SIMV(PCV)+PSV SIMV(PRVC)+PSV SPONT/CPAP+PSV BIVENT+PSV NIV/CPAP NIV-T NIV-S/T
Parameters
Tidal Volume: 20~2000 ml
Respiration Rate: 1~80 bpm
Tinsp: 0.2~9 s
Tslope: 0~2 s
Tpause: 0~4 s
I:E Ratio: 1:10~4:1
FiO2: 21%~100%
Trigger Sensitivity: Pressure (-20~0 cmH 2O, above PEEP) Flow (0.5~20 LPM)
PEEP: 0~35 cmH 2O
Psupport: 0~70 cmH 2O
Pinsp: 5~70 cmH 2O
Special Procedures:
Apnea Ventilation Smart Suction Manual Breath Insp/ Exp Hold ETCO 2 Measurement Nebulization Waveform Freeze
Monitoring
Pressure Value: Ppeak, Pplat, Pmean, Pmin, PEEP
Volume / Flow Value: Vti, Vte, MV, MVspont
Time Value: ftotal,fspont, I:E
Real Time Curves: Pressure-Time, Flow-Time, Volume-Time waveforms Pressure-Volume, Volume-Flow, Flow-Pressure loops
Gas Monitoring: FiO 2, ETCO 2
Calculated Values: Compliance(C) Resistance(R) MVleak RSBI WOB PEEPi
Alarm:
Paw high / low MVe high / low Circuit disconnect FiO 2 high / low Inspiration / Expiratory tidal volume low High Respiration Rate Apnea AC Failure Nebulizer On Low Battery Air /O 2 supply down High / Low PEEP Leakage out of range Occlusion
Technical Data
Screen: TFT color touch screen (detachable)
Supply Gas: O 2, 0.28~0.6 MPa
Power Supply: AC100~240 V, 50 Hz/60 Hz
Communication Interface: RS-232 Port, Nurse call Port, Ethernet Port
Dimension (WxDxH): 322 mm x 375 mm x 366 mm (Main Unit) 547 mm x 675 mm x 950 mm (Cart)
Weight: 12.5 kg (Main Unit) 25 kg (Cart)
