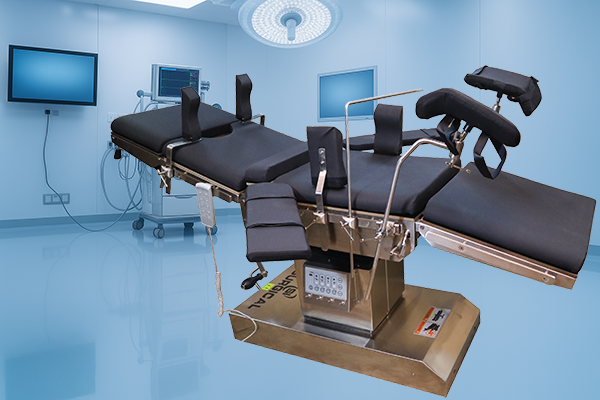

Astra 2000

Astra 2000

Cardiac/Neuro Surgery Ultra Low Electro Hydraulic C-Arm Compatible Operating Table

Techanical Specification:

  • Platform size: 1270 x 710mm±10mm
  • Lifting size: 540mm-1040mm (Without mattress)
  • Trendelenburg/reverse trendlenburg: 30±5°
  • Left right angle: 22°±5°
  • Leg plate adjustment angle: 15°/90°/180"
  • Back angle: +80°/-40"
  • Head plate angle: +60°/-90°
  • Horizontal sliding: 0~350mm±10mm
  • Waist bridge lifting distance: 0~140mm±10mm
  • One key zero: /
  • One key V-type anti-v-type:
  • Dual controller system: ✓
  • Battery:
  • Reverse position:✓
  • Power supply power: 220V 50HZ
  • Lifting stroke: 460mm
  • Rated load: 250kg
  • Weight: 250kg
  • Mattress: 4" 40 high density memory foam mattress

Electro-Hydraulic Specification:

  • Operate up to 12 cylinders (Electro-Hydraulic) including up to 4 backup function (manual-hydraulic)
  • 1-12 double acting hydraulic cylinders: 8,5 and 14 kN push forces
  • 2 hoses per cylinder: 1.0mtr/1.5mtr/2.0mtr
  • Pump motor 12V or 24V
  • Electrical part: IP 68
  • The Selector and the pump are integrated in one bloc. Selector function: manual or electrical. Manual byrotating the shaft, One of the cylinders can selected.
  • Pump function: manual or electrical. The selected cylinders are extended by pumping the foot pedal down or by handset (electro-hydraulic). The selected cylinders is retracted by pumping the foot pedal down or by handset (electro-hydraulic).

Key of futures:

  • The base of electro hydraulic operating table, the lifting column housing, the bed and the side rails are made of high-quality 304 stainless steel and aluminum ally, which are acid and alkaline resistant and corrosion resistant, easy to clean.
  • Microcomputer control is adopted to realize one key reset, posture memory, functions etc.
  • The electro hydraulic system is used to drive the operation of the bed table, including bed table lifting, forward and backward tilting, left and right tilting, back plate lifting, horizontal movement, horizontal one button reset, braking dual controller system.
  • It is applicable to neurosurgery & cardiac surgery etc.
  • Bed size 2100 540mm; The lifting range is 540-1040mm, the front and rear angels are 30° and the left and right angels are 20"; back plate lifting is +80°-40°; Head plate angel +60°-90°; Leg plate (up/down/ extended) 15°/90°/180°; The bed surface can be moved 300mm longitudinally; Manual built-in renal bridge 0-120mm
  • One key V-shaped and anti V-shaped angels can reach 200°/100°
  • After the head plate and leg plate are interchanged, they can be ≥1450mm, meeting the requirements of full penetration C-arm and spine surgery. The spilt air spring leg plate is easy to operate and can hover at will.
  • The manual controller has 30 second automatic power off function without operation to prevent misoperation.
  • The maximum loadis 250kg.
