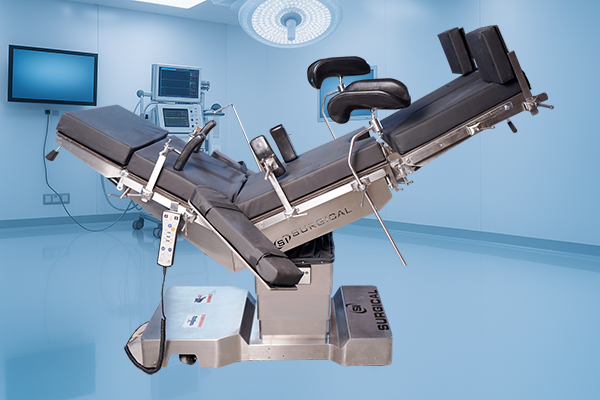

TYKO 1000 ADVANCE

TYKO 1000 ADVANCE

Electro-Hydraulic C-ARM compatible Operating Table

Salient Features

  • 100% life saving due to low voltage electricity supply
  • Offline battery backup upto 3hr.
  • 180 kg weight capacity
  • Full table function, articulation capability
  • Full body imaging without special accessories
  • Durable one touch pendant control
  • Casters locable with single action brake
  • Fully stainless steel 304 grade accurity
  • Electrical and mechanically operated height, trendelbar / reverse, lateral
  • tilt and sliding top
  •

Optional Features

Descriptions

  • Electro-hydraulic actuator and all the movements are through remote with a backup panel & foot Pump.
  • Manual override system with auxiliary switch
  • During any electro-hydraulic failure or incident table is having a emergency stop switch to stop the table.
  • Operating Table along with all the attachments are C-Arm Compatible and Radiolucent.
  • Table is with anti collision system to prevent collision if any object or C-arm comes closer to the table top.
  • The table top have more than six positions ie.Trendelenburg , reverse Trendelenburg, back plate up & down movements lateral tilt, longitudinal shift, height adjustment, anti flex and flex position and zero position.
  • Latex free fully radiolucent, detachable, impermeable to fluid and easily washable mattress.
  • Wheel mounted and Central locking mechanism.
  • Both arm board have up and down and rotation function.
  • Detachable head, leg and pelvic section.
  •  Material of the Body: SS 304 grade.
  • Input Voltage -230 ±10 V a.c, 50 Hz
  • Patient weight bearing capacity: 280 kg.
  • Battery backup: 3Hrs
  •

Applications

  • Tables include both upper-extremity procedures.
  • Elevated surface for supporting the patient's body and include specific apparatus for supporting and providing traction for the patient's limbs during orthopedic procedures.
  • Tables stabilize the patient's position and provide the operating surgeon with optimal exposure of the surgical field.
  •

Adjustments

Table Top Length: 1950 mm -2150 mm Table

Top Width: 550 mm -580 mm Minimum

Table Top Height: 650 mm Maximum Height: 1050 mm

Trendelenburg & Reverse Trendelenburg Position: 25 to 30 Degree

Lateral Tilt Left And Right: 15 to 25 Degree

Head Section UP/Down: 40 to 90 degree

Back Section UP/Down: 90 to 30 degree

Horizontal Positioning Left And Right: 0 to 90 Degree

Leg Section UP/Down: 20 to 90 degree

Flex: Up to 230 degree

Reflex Up to 100 degree

Longitudinal Sliding: 120 mm to 310mm



Accessories Provided

Anesthetic Screen With Side Clamp & Lock 1 set

Arm Rest With Side Clamp & Lock 1 pair

Shoulder Support With Side Clamp & Lock 1 pair

Lithotomy With Side Clamp & Lock 1pair

Extension Bar 1pair

Horizontal Attachments 1no

Foot Support 2 No

Bolster Pillow 2 no

Supports Bars 2 no

Radial Setting Clamps 4 No
