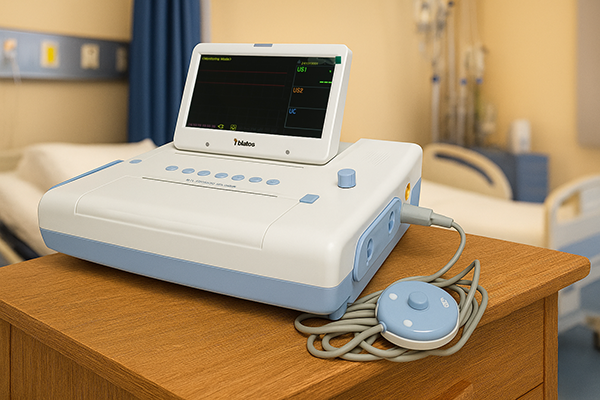

Fetal Monitor

Fetal Monitor

Technical Specifications

Physical Characteristics

Dimensions 9.6cm(H) x 32.6 cm(W) x 27.6cm(D)

Weight Approx. 5.5 kg

Display type LCD(TFT Color LCD) or LED(7 segment LED)


Standard: EN 60601-1, EN 60601-1-2, EN 60601-2-37

Classification Class I, Internal Powered Equipment

Mode of Operation Continuous operation

Protection against electric shock Type BF applied part

 Protection against ingress of water IPX8(Dop/UC probe)


External  Power adapter Input: AC 100 ~ 240 V, 50/60 Hz Output: DC 18V, 2.8A

Internal Battery 14.8V, 2600mAh (Li-ion) Operating Time: 120 min Charging Time (100%) : 150 min Maximum charge-discharge cycles: 300 cycles

Power Dissipation AC-powered 80 VA, maximum Battery powered 80 VA, maximum


Operating temperature 10°C ~ 40°C (50°F ~ 104°F)

Operating humidity 5 ~ 85%, Non condensing

 Operating atmosphere 80kPa ~ 106kPa

Storage temperature -20°C ~ 60°C (-4°F ~ 140°F)

 Storage humidity 0 ~ 95%, non-condensing

Storage atmosphere 70kPa ~ 106kPa

Doppler ultrasound FHR monitoring

MI and TI values do not exceed 1.0.

BPM Range 30 ~ 240 BPM

Accuracy ± 2% of range

Uterine Contraction (TOCO) monitoring

UC range : 0-100 relative units

 Resolution: 1 Count

Isolation: <10 µA @ 264 VAC applied to the transducer Isolation >4 kV RMS, Type BF applied part

Acoustic Stimulator

Acoustic output: 75db ± 5db (1m dist.)

Frequency: 75hz ± 5hz


Pack Style Z-Fold.

Pack Size 150 mm x 90 mm x 15 mm

End-of-Pack Mark along the paper edge

Loading Open-door, slide-in

Paper Detectors Paper Out Loading door open

Speed Normal 1, 2 and 3 cm/min ± 1% High-speed 10 cm/min (only in Trend mode)

Tracking accuracy ± 1% (exclusive of paper accuracy)
