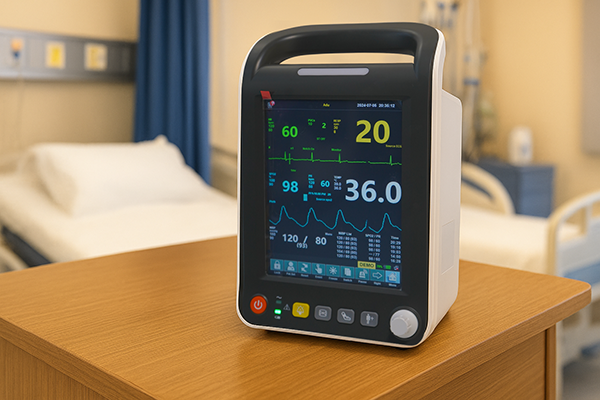

Iris 7

Iris 7

IRIS vital signs monitor is a universal vital signs monitor for various clinical applications. It is not only providing the basic vital signs spot check, but also the long term monitoring function like ECG and EtCO2, which gives IRIS the additional features for continuous monitoring, and makes it a perfect device for various department in the hospital, clinics and doctor's office.



  • Combination of numeric LED and TFT LCD display.
  • Flexible configuration between SpO2, NIBP, Temp, ECG and EtCO2.
  • High capacity lithium rechargeable batteries, operation time up to 10 hours
  • Spot check and continuous working mode to satisfy different clinical scenario. 1.5m anti-drop proof makes it suitable for emergency.
  • High capacity internal storage for 1500 hours trends or 4000 groups of data. Ethernet, WiFi and 3G connection for transfer data from anywhere and anytime
  • Plug & Play type thermal printer.

Physical Specification

Dimensions: 250*180*180mm

Net weight: 2kg (including battery)

Display: LED+32" LCD




Lead type :3-lead,5-lead, 12-lead(optional)

ECG waveform 2 channels, 7 channels, 12 channels

Display sensitivity(wave gain):

1.25mm/mV(x0.125), 2.5mm/mV (x0.25), 5mm/mV (x0.5), 10mm/mV (x1.0), 20mm/mV (x2.0), 40mm/m

(x4.0), Auto

Wave sweep speed.

3.125mm/s, 6.25mm/s, 12.5 mm/s, 25 mm/s, 50 mm/s


Diagnostic mode: 0.05Hz-100Hz

Monitor mode: 0.5Hz-40Hz

Surgery mode: 1Hz-20Hz

Strong filter mode: 5Hz-20Hz


Notch: 50/60Hz notch filter can be set to on or off

Differential input impedance>5MQ

Electrode polarization voltage range: ±400mV

HR range: 15-350 bpm

ST Measurement Range: -1.0+10 mv

Baseline recovery time <3s after defibrillation (in monitor and surgery mode)

Calibration signal:1mV (peak-peak), accuracy ±3%


Measurement method: Thoracic electrical bioimpedance

Operation modes: Auto/Manual

Measuring lead: Lead I, II

Measurement range: Adult:0-120 bmp: Neonate/Pediatric:0-150bpm

Resolution: 1 bpm

Apnea alarm delay.10s, 15s, 20s, 25s, 30s,355,40s

Apnea alarm: Selectable

Wave gain: x0.25, 0.5, x1, x2

Respiratory impedance range: 0.5-50

Baseline impedance: 500-40000

Gain: 10 grades

Scan speed: 3.125mm/s, 6.25mm/s, 12.5 mm/s, 25mm/s


Accuracy: ±0.1°C or ±0.2°F

Measurement range: 5-50°C (41-122°F)

Channel: Two channels

Resolution: 0.1°C

Parameters: T1,T2 and TD

ECG Puise Rate

Range: 30-300bpm

Resolution: 1bpm

Accuracy: ±2bpm (non-motion) +5bpm (motion)

Refreshing rate: 1s


Measurement range: 0-100%

Resolution: 1%

Perfusion index display

Accuracy: ±2% (70-100%, Adult/Pediatric); ±3% (70-100%, Neonate): 0-69%, unspecified

Refreshing Rate: 1s


Measurement method: Automatic oscillometric method

Operating mode Manual, automatic, continuous

Measurement unit: mmHg/kPa selectable

Typical measurement time: 20-40s

Measurement type: Systolic, Diastolic Mean

Measurement range (mmHg)

Range of Systolic pressure:

Adult 40-280

Pediatric 40-200

Neonatal 40-135

Range of Diastolic pressure:

Adult 10-210

Pediatric 10-150

Neonatal 10-95

Range of Mean pressure:

Adult 20-230

Pediatric 20-165

Neonatal 20-105

Measurement accuracy

Maximum average error: ±5mmHg

Maximum standard deviation: 8mmHg

Resolution: 1mmHg

Interval: 1,2,3,4,5,10,15,30,60,90,120,180,240,48


Overpressure protection: Software and hardware, double safety protection

Cuff pressure range: 0-300mmHg
