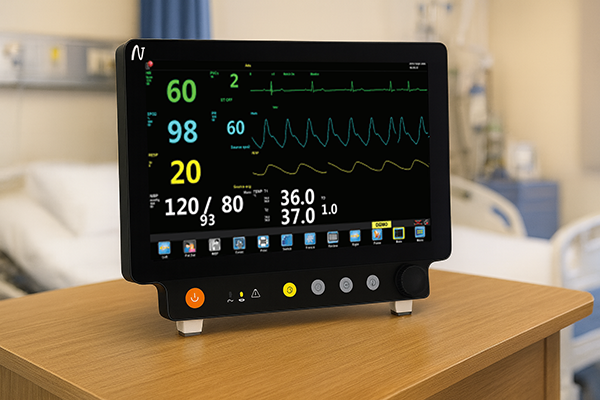

Product Details



Easy access to view the historical data

Masimo SET SpO2

Measure-through Motion and Low Perfusion pulse oximetry delivers accurate and reliable oxygenation.

Masimo Gas Technology

IRMA Mainstream & ISA Sidestream Analyzers Allows selection of the modality best suited to the application.

Bispectrial Index™ by Aspect

Monitor the level of consciousness of the patient under general anesthesia or sedation. provides BIS, SQL, EMG, SR, SEF, TP, PC value and EEG wave.


Neuromuscular monitoring


2-4 Channel, support IBP waveform overlapping display


Cardiac Output



15.6"/18.5"High resulotion TFT LCD Touch screen

10 waveform display up to 12-lead ECG analysis

Powerful calculation (Hemodynamic, Dose, Oxygenation, Ventilation)

MEWS(Modified Early Warning Score)

Pacemaker detection

ST & arrhythmia analysis(26 types)

SpO2 support PVI and PI, low perfusion 0.2%

Night mode, standby mode, venipucture mode

Trolley/wall mount braket solutions

Support BIS module, NMT module

Wired/Wireless/4G connection, support HL7 protocol to HIS

SpO2 pulse-tone modulation (Pitch Tone)

VGA/HDMI support external display

Graphical & tabular trend review

 Rechargeable Lithium-ion Battery

72 hours full disclosure wave review for each patient

Central Monitoring System

Up to 64 beds Net work is compatible to wired or wireless CMS Auto adaptable to different screen resolution



Physical Specifications


15.6" TFT Touch screen

Resolution: 1366 x 768

Number of traces: 10 up to 12 ECG waveforms

Dimension: 398-302-183mm(WHD

Weight: 7 kg under standard configuration LAN 1 standard 8145 port

WLAN IEEE 802.11b/g/

USB 2 USB nectors

HDMI 1 HDM monitor connector

Output connector for Nurse call Defib Sy Analog Output


Measurement method: Automatic oscillometric method

Operating mode Manual, automatic, continuous

Measurement unit: mmHg/kPa selectable Typical measurement time: 20-40%

Measurement type: Systolic, Diastolic Mean

Measurement range (mmHg)

Masimo ISA Sidestream CO2 (Optional

Warm-up time: Full accuracy within 10 seconds

Sampling flow rate: 50ml/min(+/-10/min

Measurement Range: 0-25%


0-15% (0.2% of the reading)

15-25% unspecified

Rise time: 200ms typical at 50ml/min flow rate

Total response time:

within 3 seconds (with 2 m Momaline sampling line

AWRR Range: 0-150bpm

AWRR Accuracy ±1 breath


Lead type :3-lead 5-lead 12-lead(optional)

ECG waveform2 channels, 7 channels, 12 channels

Display sensitivity(wave gain): 1.25mm/mV(0.125), 2.5mm/mV (0.25), 5mm/mV (0.5% 10mm/mV (1.01, 20mm/mV (2.0), 40mm/mV (40)


Wave sweep speed: 3.125mm/s, 6.25mm/s, 12.5 mm/s, 25 mm/s, 50 mm/s


Diagnostic mode: 0.05Hz-150Hz

Monitor mode: 0.5Hz-40Hz

Surgery mode: 0.5Hz-25Hz

Strong filter mode: SHz-25Hz


Notch: 50/60Hz notch filter can be set to on or off

Differential input impedance>SMD

Electrode polarization voltage range 400mV

HR range: 15-350 bpm

Baseline recovery time is after defibrillation in monitor and surgery mode)

Calibration signal1mV (peak peak), accuracy ±3%
