Product Overview
SI SURGICAL brand low-temperature plasma sterilizer generates plasma in the sterilization chamber under low temperature and vacuum through the action of high- frequency electric field to chemically react with proteins and nucleic acids in microorganisms, and disturb the survival function of microorganisms, so as to finally achieve the sterilization effect.
Applicable Articles
Rigid endoscope: soft endoscope: probe: ophthalmic lens: fiber opticable: intracranial sensor: cold therapy probe: surgical excision device: electrocautery equipment: defibrillation motor: metal: silicone: rubber ETC.
Application Scenario
CSSD disinfection supply center, operating room, inspection department, university laboratory and relevant testing institutions.
Sterilization Process
- Air removal from chamber
- Preparation for diffusion
- Diffusion ( sterilization stage): instruments are exposed to the oxygen vapor
- Gas removal from chamber & breaking apart oxygen molecules
- Repeat diffusion stage ( sterilization) and oxygen gas removal
- Removal of residue
-
Lowtemperature plasma hydrogen peroxide sterilizer
MODEL LINER mm OUTSIDE mm VOLUME POWER WEIGHT

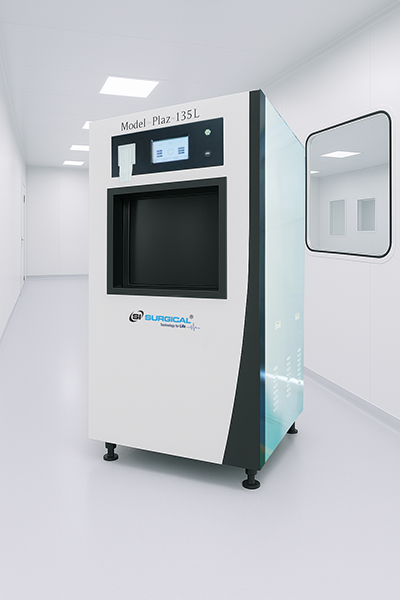

SI Plaz 100 700*430*360 D * W * H 1067*79*1782 L * W * H 108L 3.4KVA 239KG
SI Plaz 135 750*450*400 D * W * H 1067*79*1782 L * W * H 135L 3.5KVA 245KG
SI Plaz 190 820*510*460 D * W * H 1067*79*1782 L * W * H 192L 4.3KVA 263KG
SI Plaz WD 610*350*320 D * W * H 750*630*1495 L * W * H 68L 2.6KVA 185KG
