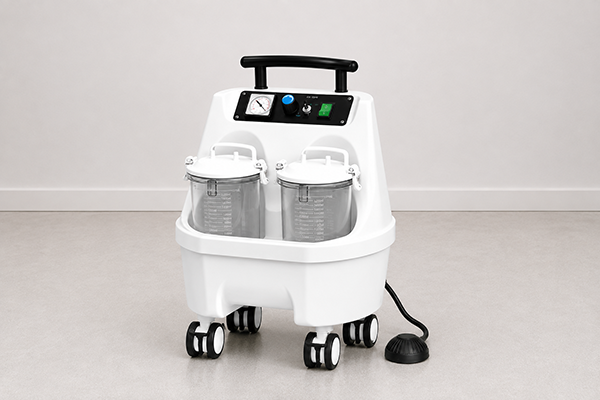

Suction Machine

INSTAVAC PRO

Specification:

• Motor: Piston
• Max negative pressure: ≥ 0.06MPa (60kPa)
• Negative pressure adjustment: Adjustable within the range of 0.02MPa (20kPa) to ultimate negative pressure
• Adjustment step value: Stepless pressure regulation
• Flow air flow: ≥20L/min
• Overflow protection: When the overflow protection device is activated, the overflow protection is turned on and the suction should stop
• Noise: ≤55dB(A)
• Accuracy: ≤5% (of the full range of the vacuum gauge)
• Vacuum gauge: The negative pressure increases when the vacuum adjustment knob turned counter clockwise
• Temperature: ≤40°C
• Working environment: Relative humidity 10%–90%, no condensation
• Atmospheric pressure: 860hPa–1060hPa
• Rated voltage: AC 220V ±22V
• Rated frequency: 50Hz ±1Hz
• Fuse: F2A 250V
• Input Power: 145VA +15%
• Net weight: ≤45kg (unit along with accessories)
• Size: 415mm (W) × 345mm (D) × 610mm (H)
