X-ray & Digital Radiography

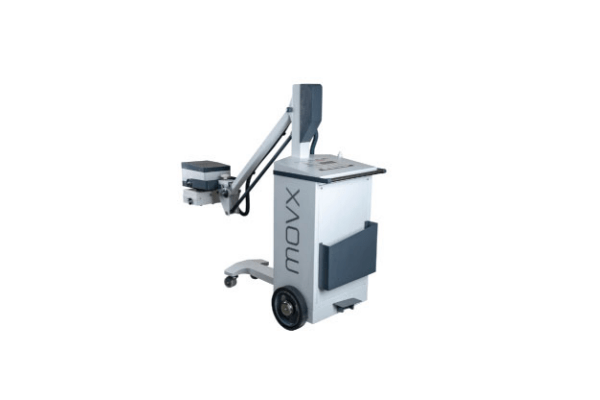

100ma X Ray Machine

Digital Control Panel

• Microprocessor Based Digital feather touch Control Panel with LCD display.
• Digital selection & display of mA, kV, mAs.
• Anatomical Preset Programme with selection of body parts and patient type.
• Programmable Anatomical Technique at any time by the operator by one push.
• Available with either fixed or rotating anode X-ray tube.
•

Mobile Stand

• Compact, lightweight design with spring balance Arm.
• Long reach, fully balanced, tube arm enables various quick and precise position.
• Effortless Rotation of tube around the axis.
• Well positioned and easy locking system for easy movements on slopes, inclines and ramps.
• Folding arm allows Safe and easy parking of tube head, requires less floor area.
•

System Specifications

• Model No: Mi 100HF
• Type: High Frequency
• Generator Output: 4.2 kW
• X-ray Ripple Frequency: 100Khz
• rnA Range: 40 to 100 mA
• X-ray Tube type: Stationary Anode
• Focal Spot (Large): 1.5 mm
• Small Focus: -
• Input Power: Single Phase, 220V 50Hz + 10%, 15A
