X-ray & Digital Radiography

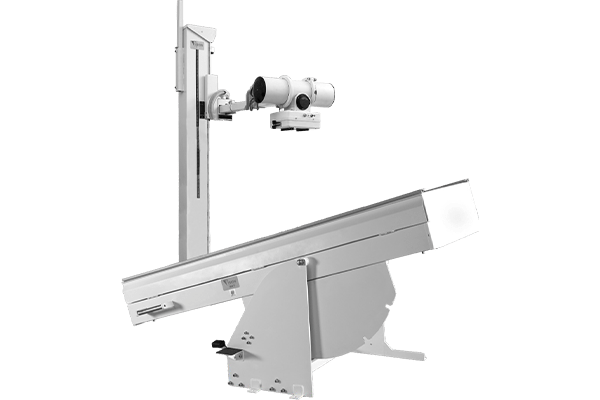

300HF X - Ray Machine

Technical Specifications

• Model / Speces: 300 HF
• Fuoroscopic Technic Range of mA: 0.5-6mA
• Tube Unit : Rotating Anode Tube Unit with Focal spot 1.2 and 2.0 Sq.mm (Two Nos) Toshiba
•

Control

• Controller: Microprocessor based
• Exposure Technic: 2 Point Technic
• Anatomical Programs : with ± 60 optional dissecting programs
• Input Power : 3 Phase, 440 v ac ± 10%, 30kva
• Automatic input voltage compensation: ± 10%
• Table: Horizontal Bucky Table or Manual five position Table Or Motorized Table Or Horizontal Bucky Table with four way floating table top
• Vertical Bucky: Vertical Bucky compatible for cassette sizes up to 14 x 17 inch
• Generator: High Frequency
• High Frequency: 100 kHz
• Max. Output Power : 30 kw
• Radiography Technic KVP Range : 40-125kv
• Precision of kv : S±5%
• mA Range : up to 300mA
• Precision of mA : S±10%
• Range Of exposure time : 0.0001-6 sec minimum: 1 ms increment / decrement
• Precision of Time : ±10% ( 1 ms )
• Range of mAs : 1-630mAs
•

Utility

Providing you complete solutions for every application, a wide range of optional high quality accessories are also available. All with guarantee of quality and enduring value. * Radiography and radiography/fluoroscopy floor to ceiling tube stands. * motorized, Horizontal and Manual multi-position bucky, examination tables. Ideal for routine examinations such as the chest, extremities, skull and for special investigations including barium, IVP and routine orthopedic examinations, abdomen and pelvic studies.
